Single/Split Phase, Low TCO, Pay As You Grow

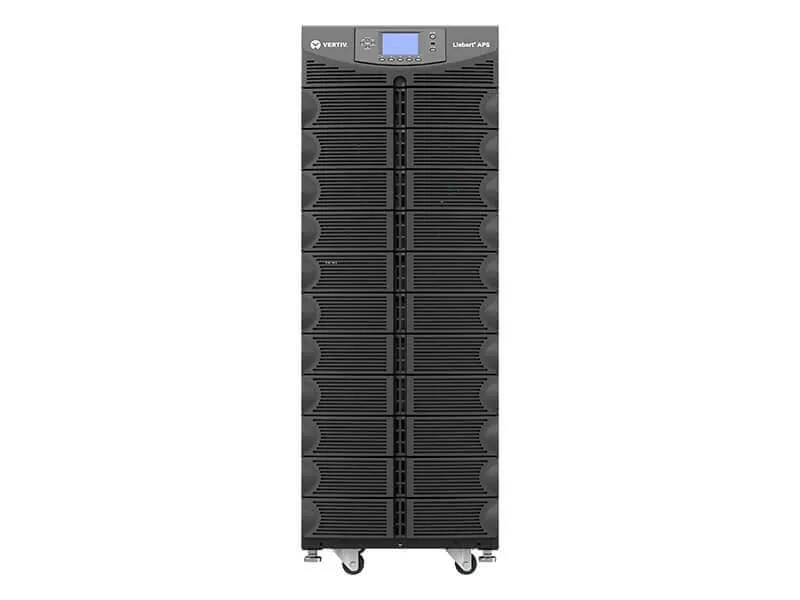

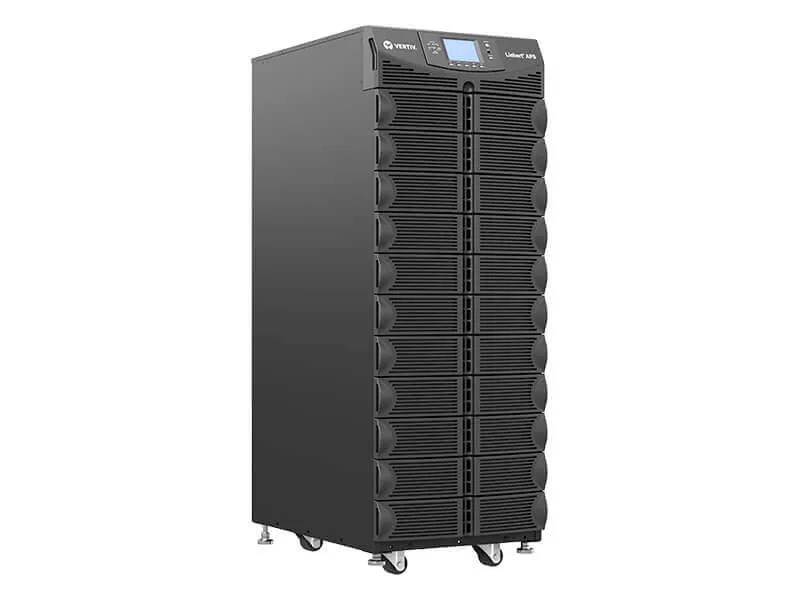

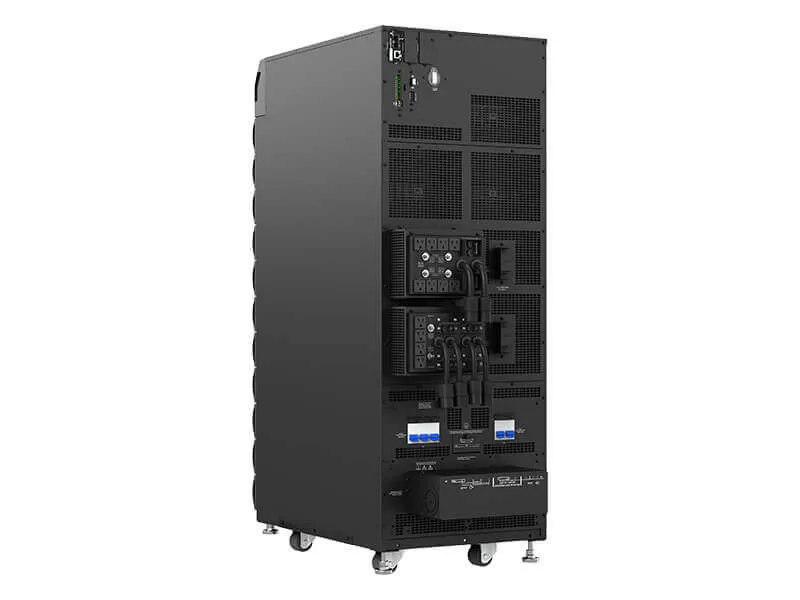

The Vertiv Liebert APS 5-20kVA Scalable to 20kVA N 1 is a modular online double conversion uninterruptible power supply (UPS) designed for room or row-based applications. It comes in 5kVA/4.5kW increments whether it is a 208V single phase UPS or 120/208V split phase UPS, with step-down transformer or transformer-free. Liebert APS UPS offers module-level redundancy that allows you to maintain flexibility for the future while ensuring maximum power availability to your critical systems. This UPS provides hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. This modular UPS includes these features:

Product Highlights:

Online Double Conversion Technology in this UPS means power protection and conditioning.

User replaceable and hot-swappable

Up to 92% Energy Efficiency, which supports sustainability and reduces TCO

With on-board controls, modules can take itself offline without causing unit to shutdown

Has intelligent battery management including temperature-compensated charging to prolong battery life

Can operate in a temporary overload state to up to 200% load.

GENERAL INFORMATION
Manufacturer	Vertiv
Manufacturer Part Number	AS3C0NCWGNNXLKB
Brand Name	Liebert
Product Series	AS3
Product Name	APS 15kVA Scalable to 15kVA N 1
Product Type	Dual Conversion Online UPS
TECHNICAL INFORMATION
Plug/Connector Type	Hard Wire 3-wire (L-L-G)
Phase	Single Phase
Application/Usage	Mission Critical Equipment Room IT Infrastructure Business
POWER DESCRIPTION
Load Capacity	15 kVA/13.50 kW
Input Voltage	120 V AC 230 V AC
Input Voltage Range	120 V AC - 280 V AC
Output Voltage	100 V AC 240 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
CONTROLS/INDICATORS
Status Indicators	LCD Display
INTERFACES/PORTS
Serial Port	Yes
Modem (RJ-11)	No
Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes
BATTERY INFORMATION
DC System Voltage	144 V DC
Battery Characteristics	Valve-regulated/Non-spillable
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	8 Minute
ENVIRONMENTAL CONDITIONS
Environmental Sensors	Leak Detection Sensor Temperature Sensor Humidity Sensor
Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	1233.24 W
PHYSICAL CHARACTERISTICS
Form Factor	Rack/Tower
Height	27"
Width	17"
Depth	32"
MISCELLANEOUS
Additional Information	Auto Shutdown Software: Trellis™ Power Insight Extra Power for Future Expansion: 15kVA/13.5kW N 1 Relative humidity: % 0 - 95%, non-condensing Altitude: m (ft) 3000 (10000) @ 25°C (77°F) Output Voltage: 100-240VAC VGA: No Hot-Swappable: Yes
Certifications & Standards	Certifications & Standards: UL 1778, 5th Ed. CSA 22.2 FCC Part 15 Class B FCC UL c-UL NOM ANSI C62.41 Category A, Level 3 ISTA 2A
Environmentally Friendly	Yes
Environmental Certification	REACH RoHS 2 WEEE
WARRANTY
Limited Warranty	2 Year
