Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | 3 Relay (N.O.), 1 Solid State |
| Dimensions | 45 x 99 x 114 mm |
| Family Name | Preventa XPS Safety Automation Family |
| Function | Safety |
| Input Type | Voltage |
| Maximum Operating Temperature | 55 °C |
| Minimum Operating Temperature | -10 °C |
| Mounting Style | DIN Rail |
| Mounting Type | DIN Rail |
| Number of Channels | 1 Channel |
| Number of Outputs | 4 |
| Power Rating | 1.2 W |
| Relay Type | Safety Relay |
| Series | |
| Special Features | Auxiliary Contacts |
| Standards | BG ; CSA ; UL |
| Supply Voltage | 24 VDC |
| Temperature Operating Range | -10 to 55 C |
| Terminal Type | Screw Clamp |
| Termination | Screw Clamp |
| Type | Safety Relay |
| UPC Code | 785901297581 |
| Voltage Rating | 24 VAC/VDC |
| Voltage, Control | 24 VAC ; 24 VDC |
Overview

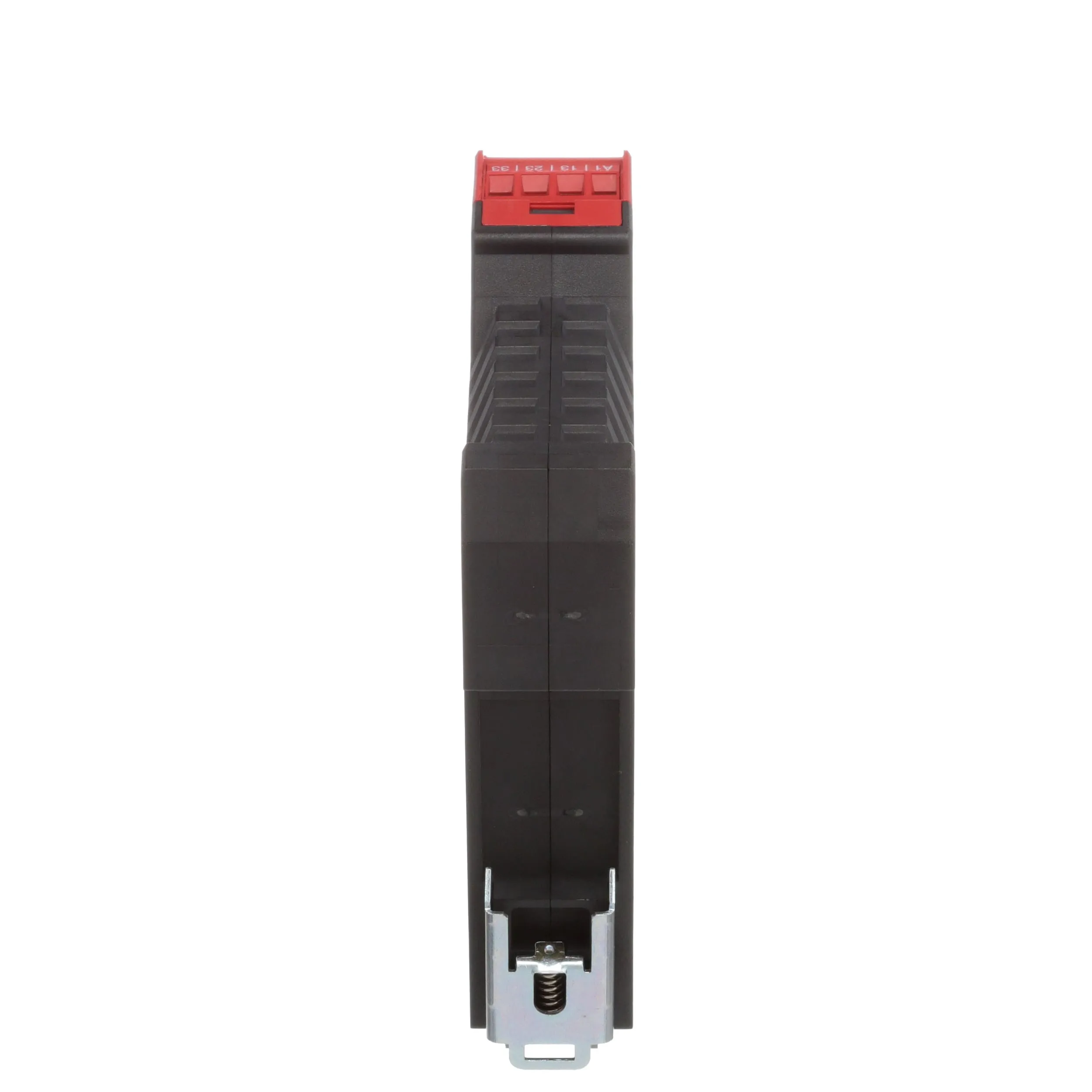

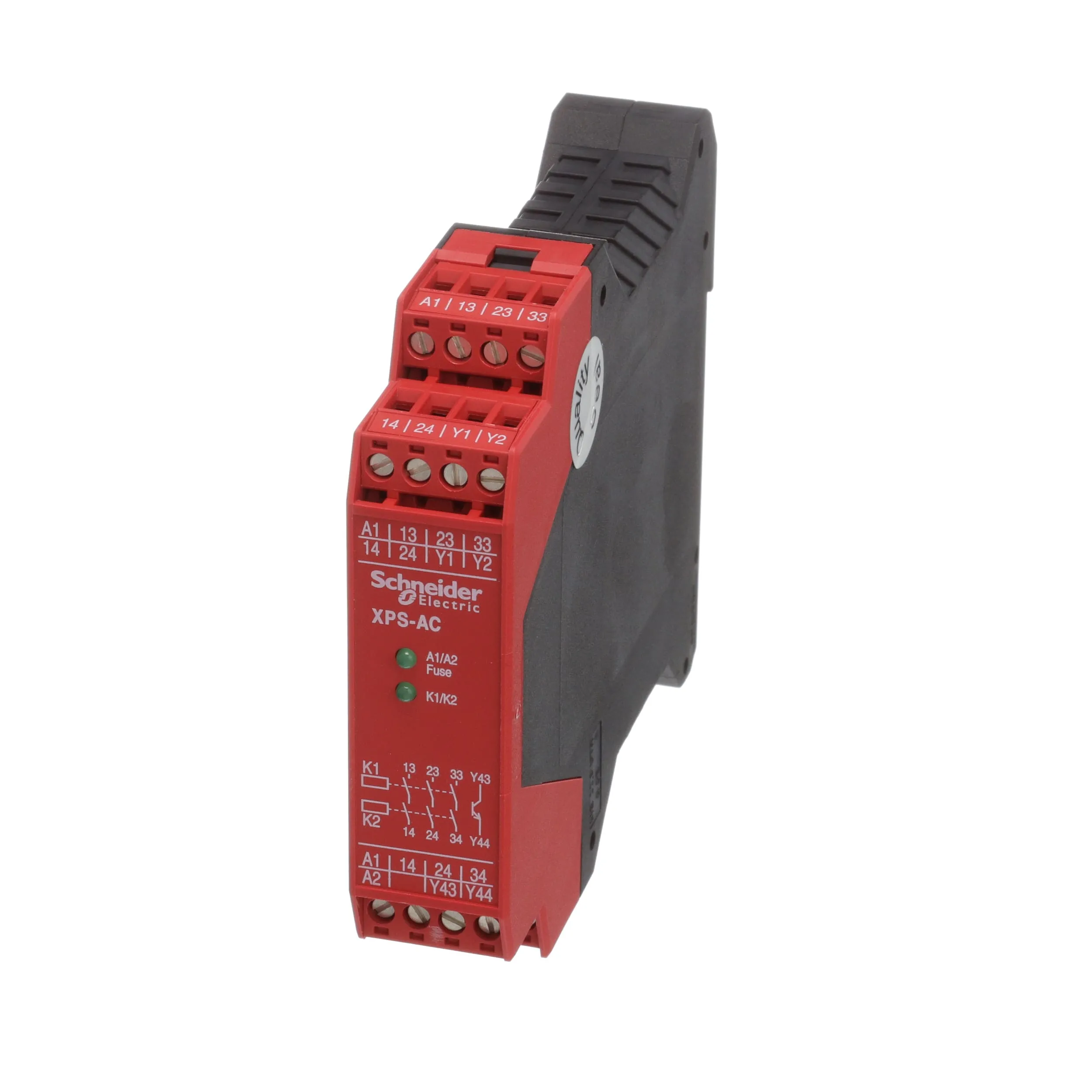

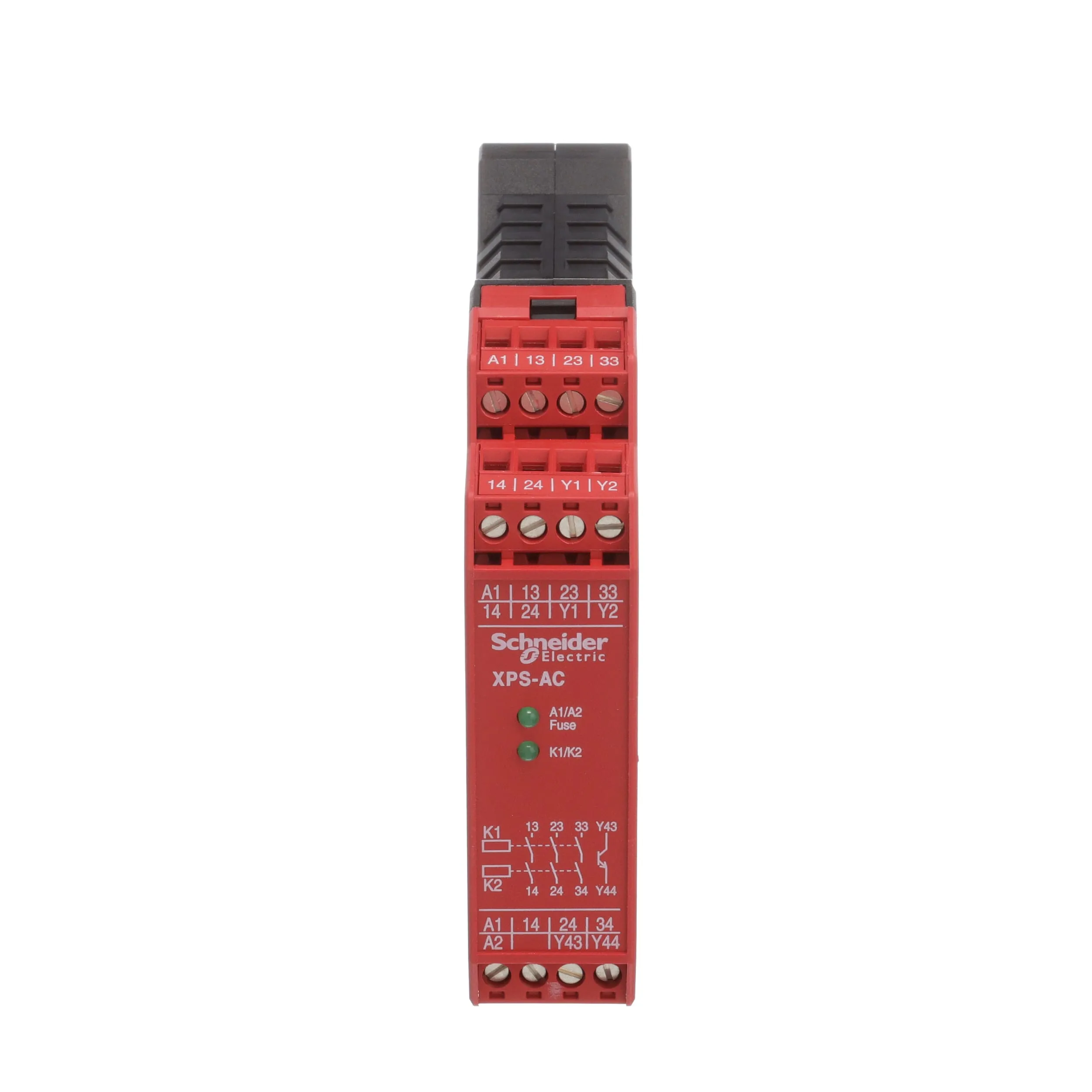

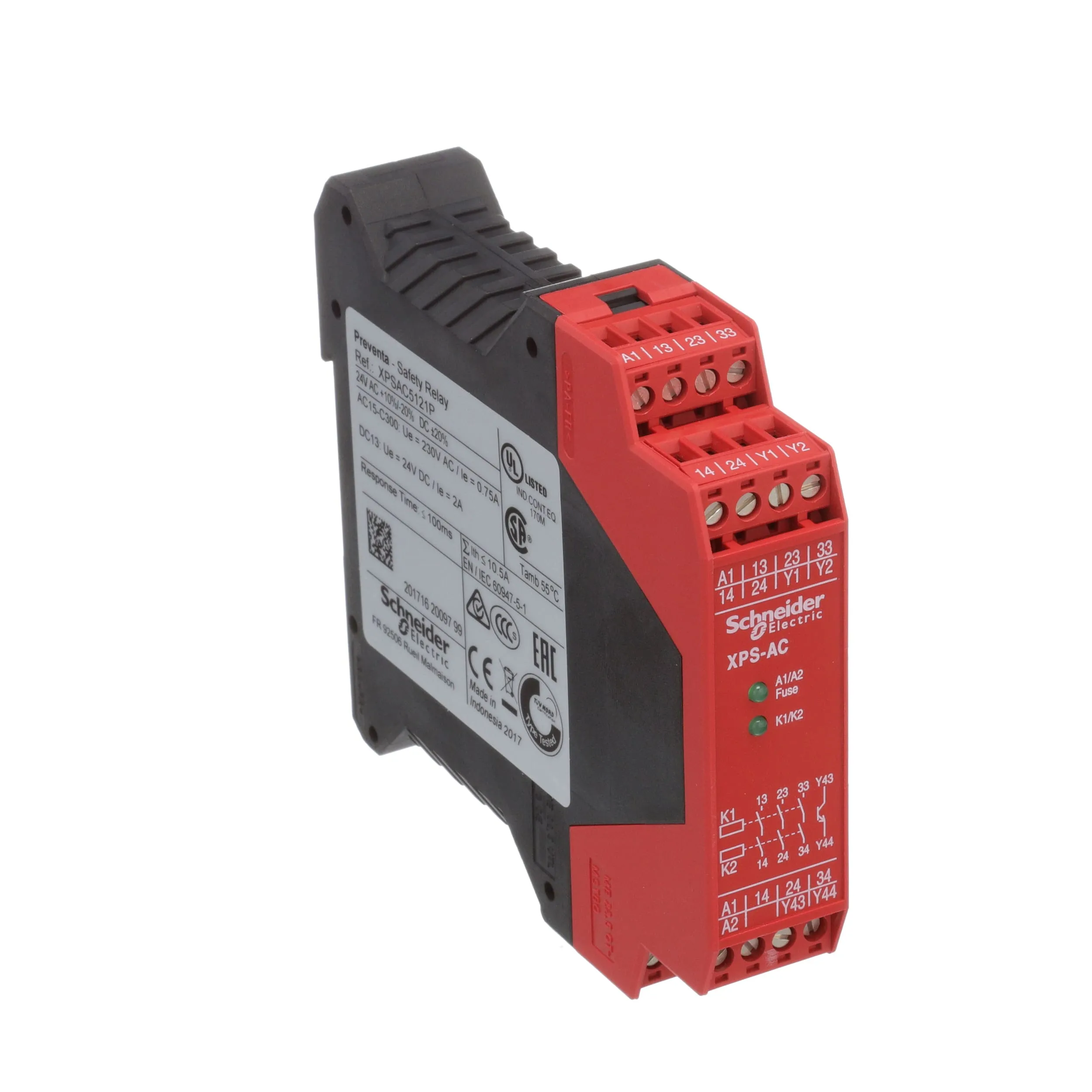

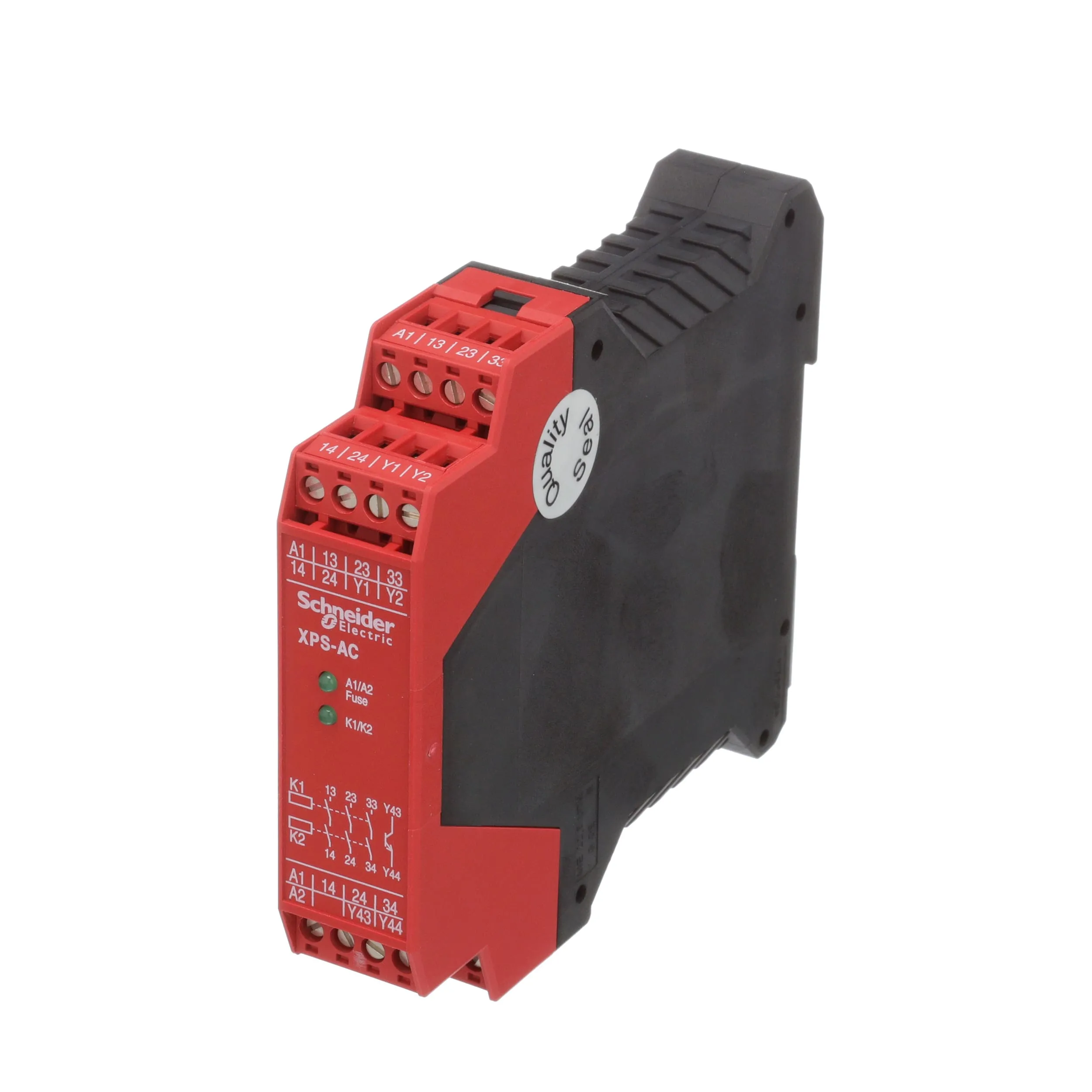

Schneider Electric Preventa XPS-AC Series — Safety Modules For Emergency Stop and Switch Monitoring:
Safety modules XPSAC are used for monitoring Emergency stop circuits conforming to standards EN/ ISO 13850 and EN/IEC 60204-1 and also meet the safety requirements for the electrical monitoring of switches in protective devices conforming to standard EN/ISO 14119.
Features:
dangerous movement on receipt of a stop instruction from the operator, or on detection of a fault in the safety circuit itself
