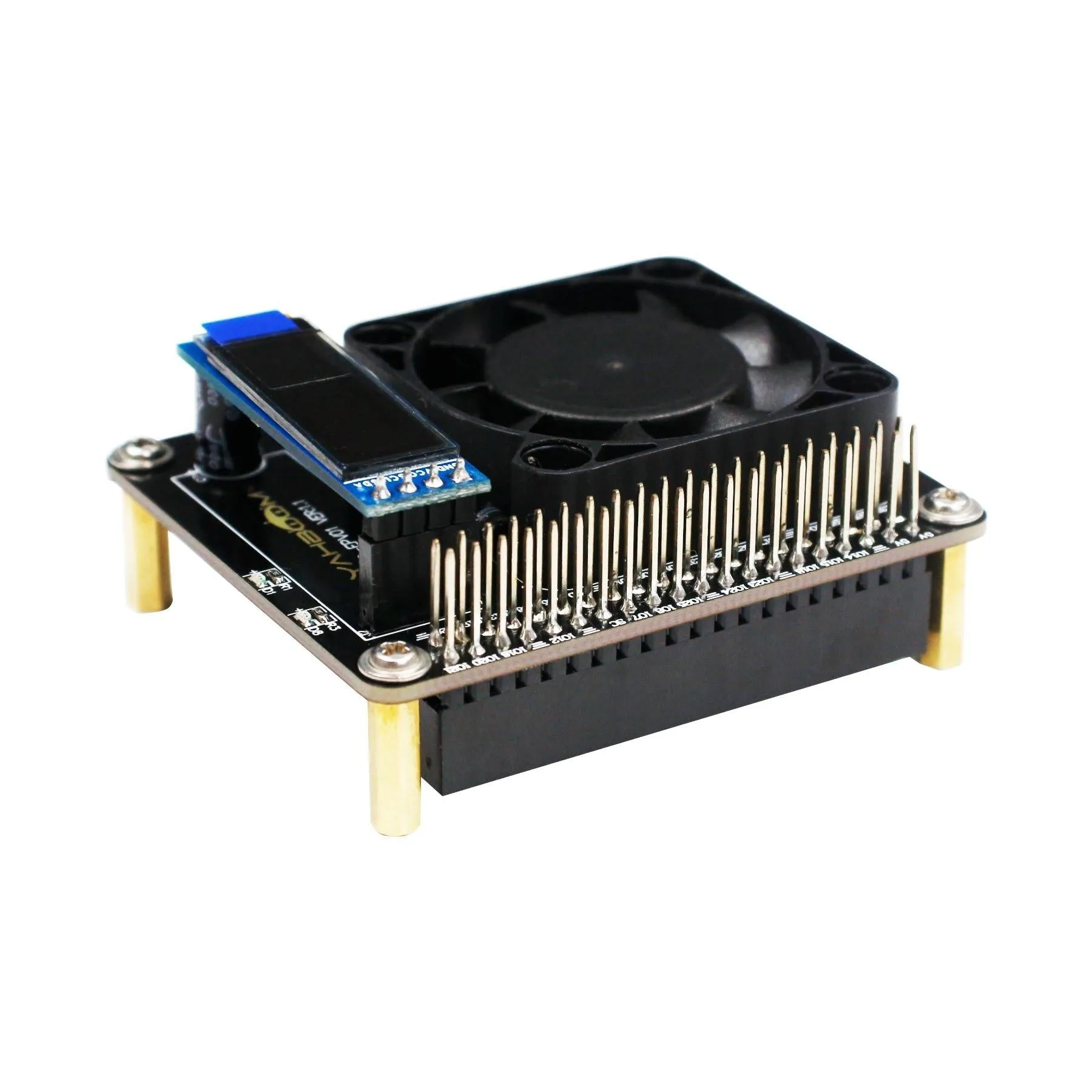

This is a Multi-function cooling expansion board designed for Raspberry Pi and RDK series board. It is perfectly compatible with the Pi 5/4B/3B /3B to protect Raspberry Pi and extends its life. A 4pin IIC interface for OLED display, which can real-time display CPU temperature, CPU usage, hard disk space, memory and IP address. The large-size cooling fan on the board with strong wind power, it can make Raspberry Pi can run more stably by automatically adjust the speed according to the CPU temperature. 3 high-brightness RGB programming lights on the bottom of the expansion board, which can realize following lights, breathing lights, marquees and so on. It also expandS Raspberry Pi 40pin header and can be used to connect to other devices. We will provide a driver package for all Raspberry Pi images, which is convenient for users to drive fans, OLED displays, RGB lights.

Feature

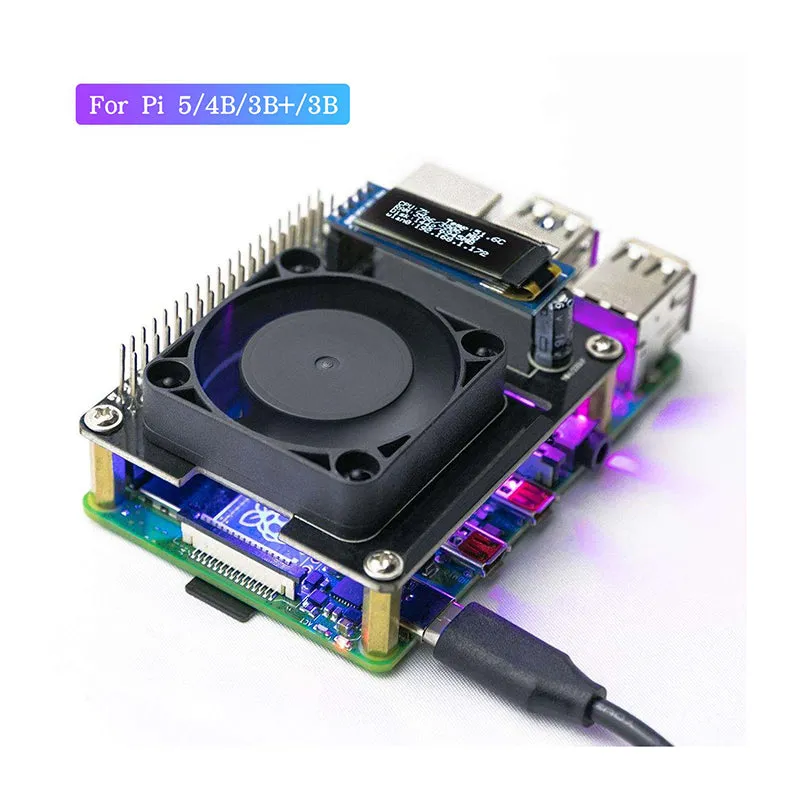

• Perfectly compatible with Raspberry Pi 5/4B/3B /3B, not occupy any Raspberry Pi pin, not occupy heat sink space.
• The powerful fan on the board can automatically adjust the speed according to the CPU temperature to control the air volume.
• Support OLED display, which can display the running status of Raspberry Pi in real-time.

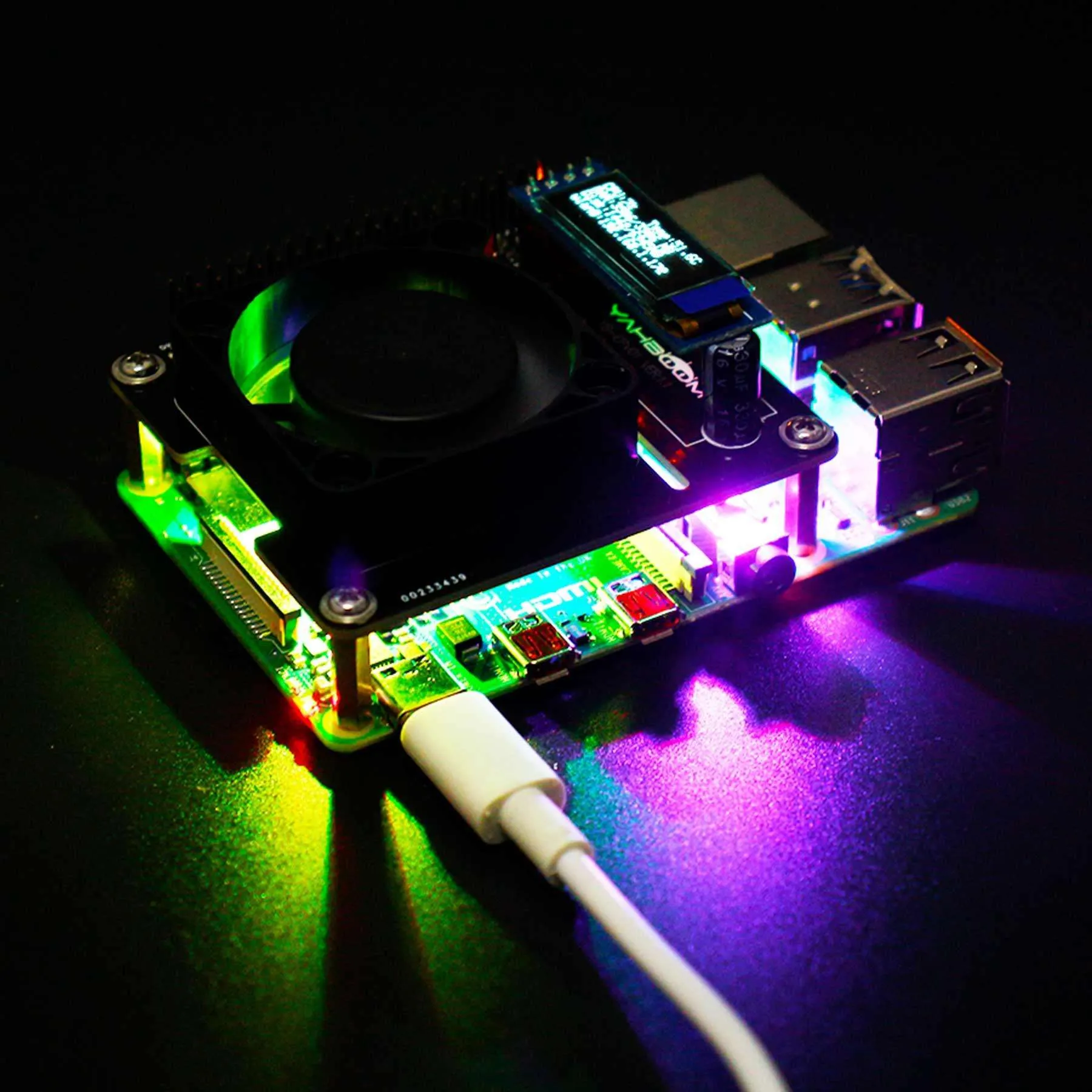

• High-brightness RGB lights to enhance the aesthetic appearance, but also to achieve a variety of funny lighting gameplay.
• A driver package that can drive all the functions of the expansion board, as well as program source code and tutorials will be provided.

Detail

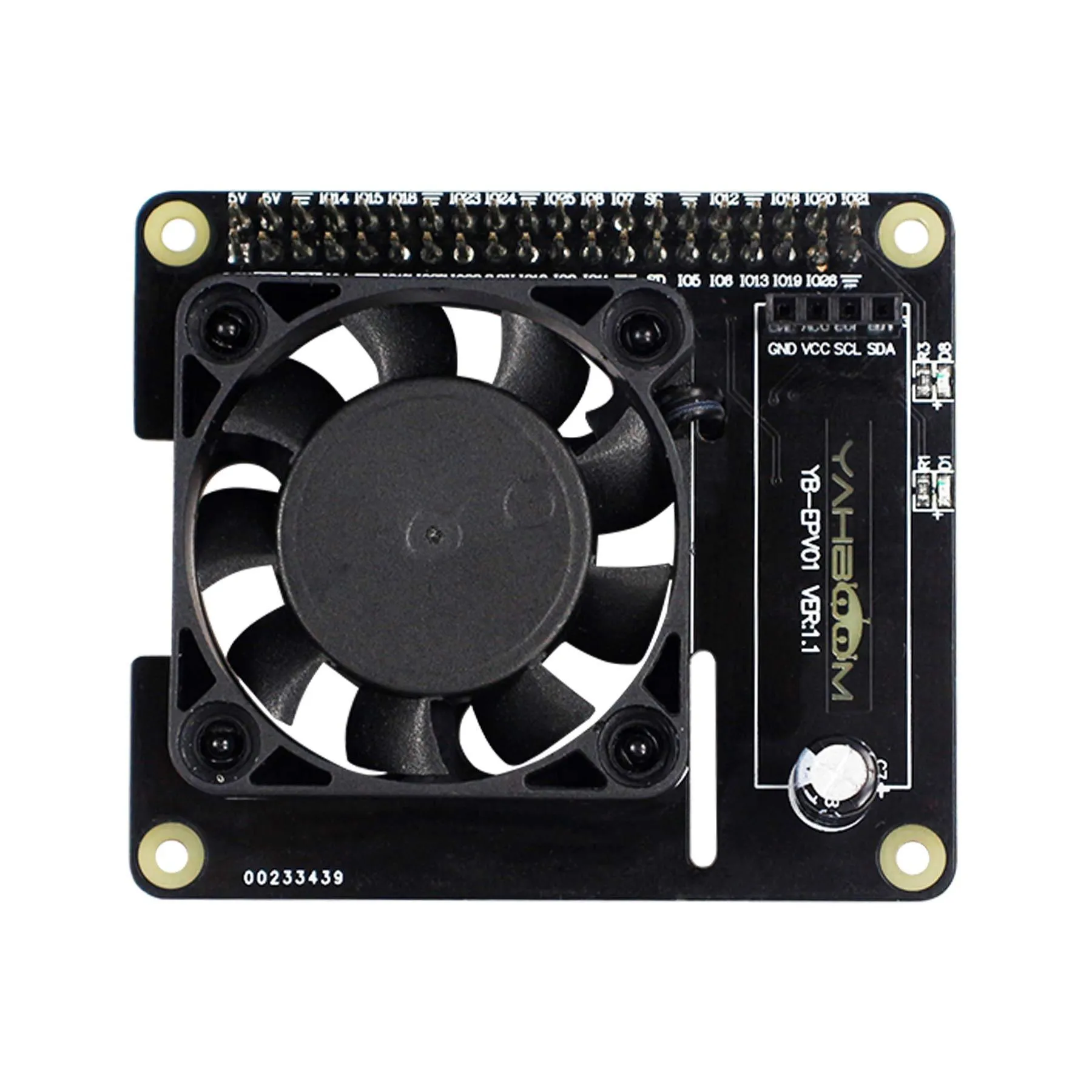

Raspberry Pi cooling HAT expansion board:

Size: 61mm*59mm

Weight: 34.1g

Cooling fan:

Size: 40mm*40mm

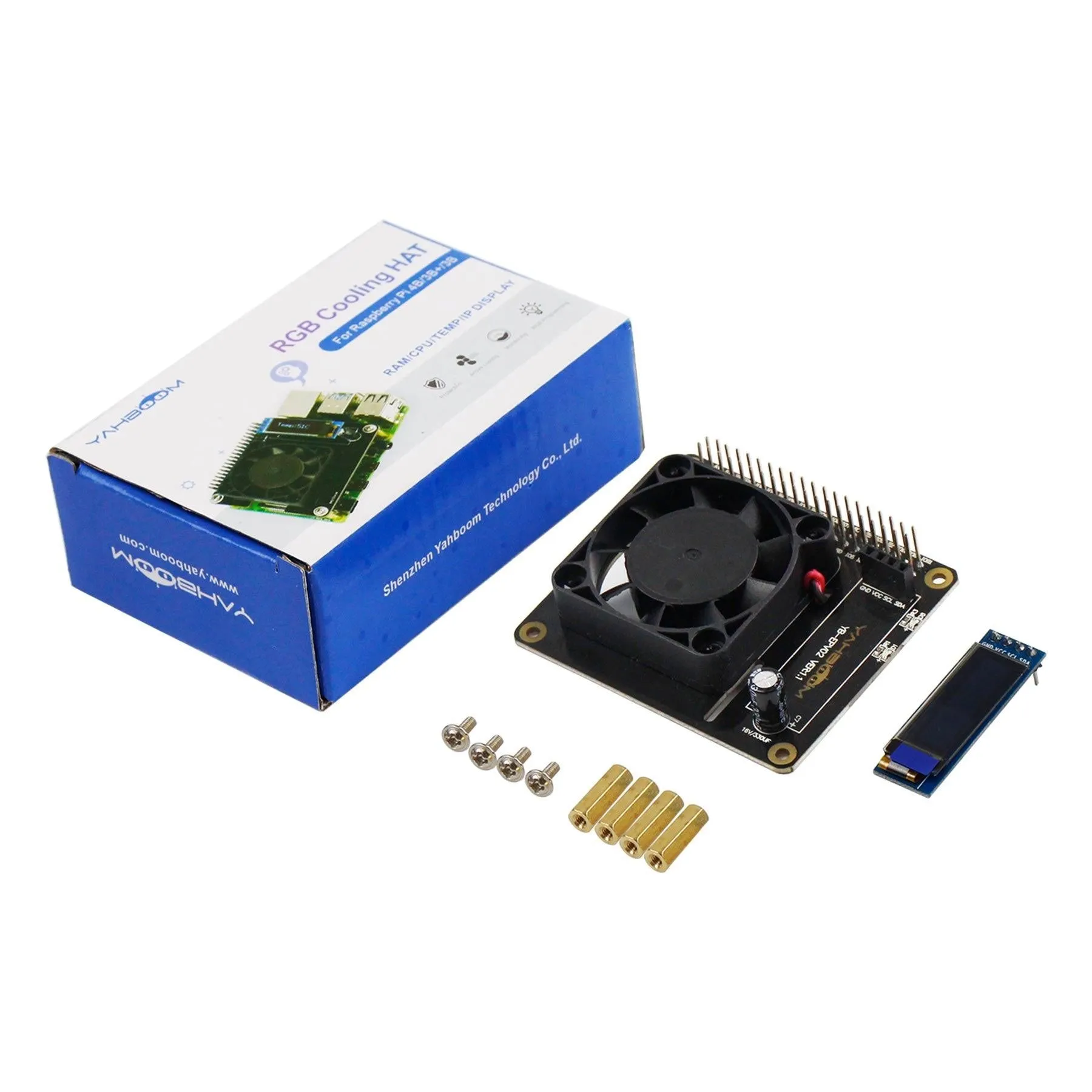

Package list

Raspberry Pi cooling HAT expansion board*1

Copper column *4

Screw *8

OLED display *1
