Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Modbus⁄TCP (UDP) Bus Coupler |
| Alternate Mfr Part Number | IL ETH BK DI8 DO4 2TX-PAC |
| Application | Communication |
| Approvals | ATEX, UL Listed, cUL Listed, cULus Listed, LR, GL, BV, RINA, GL-SW, cUL Recognized, EAC, GL, UL Recognized, DNV GL, cULus Recognized |
| Current, Supply | 70 mA |
| For Use With | Controller |
| Input Type | Digital |
| Mounting Type | DIN Rail Mount |
| Number of Inputs | 8 Input |
| Number of Outputs | 4 Output |
| Output Type | Digital |
| Primary Type | Interface |
| Series | |
| Special Features | Inline Modular Modbus TCP Bus Interface |
| Standards | EN 61000-4-2, IEC 61000-4-2, IEC 61140, EN61140, VDE 0140-1 |
| Supply Voltage | 19.2 to 30 VDC |
| Type | Bus Coupler |
| UPC Code | 4046356041157 |
Overview

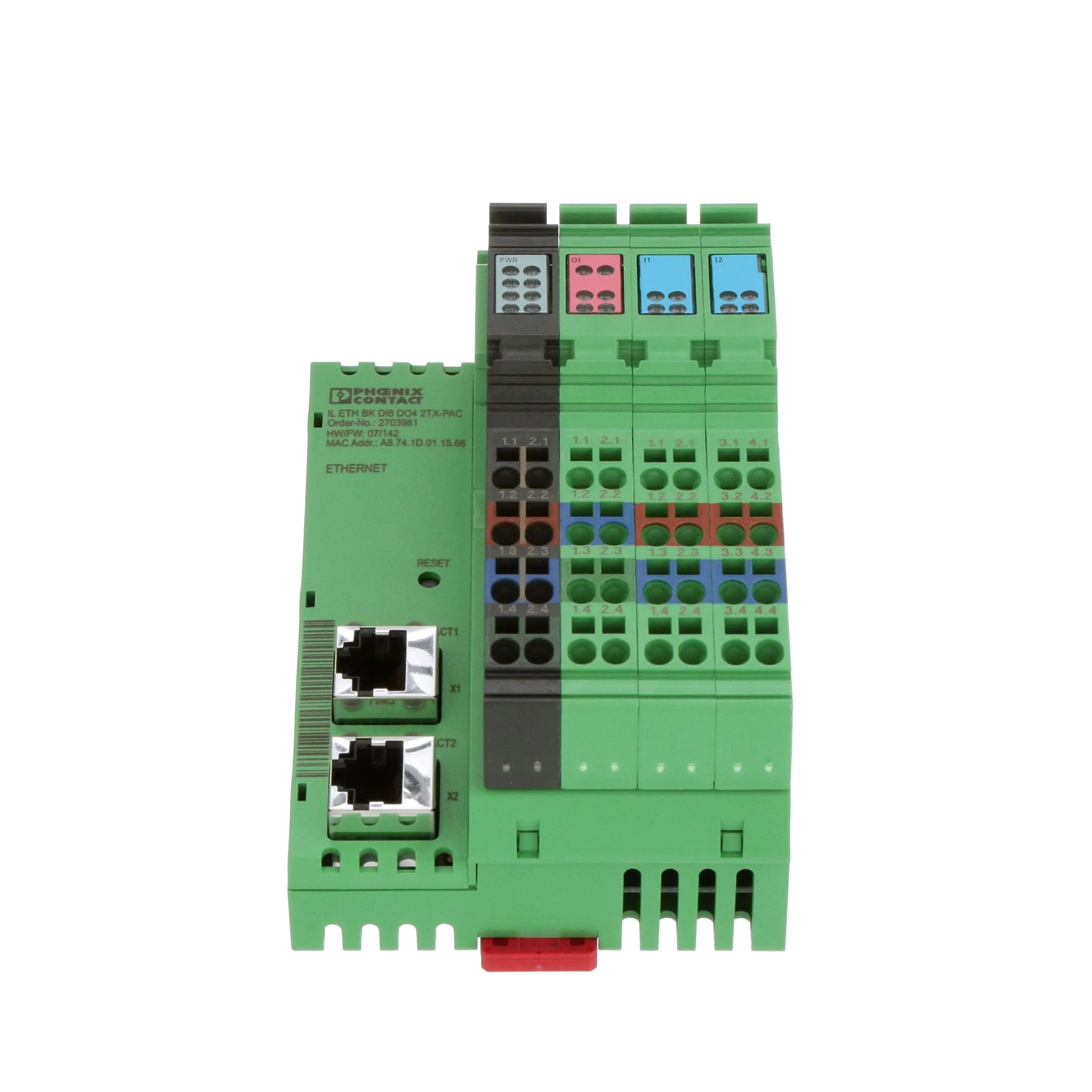

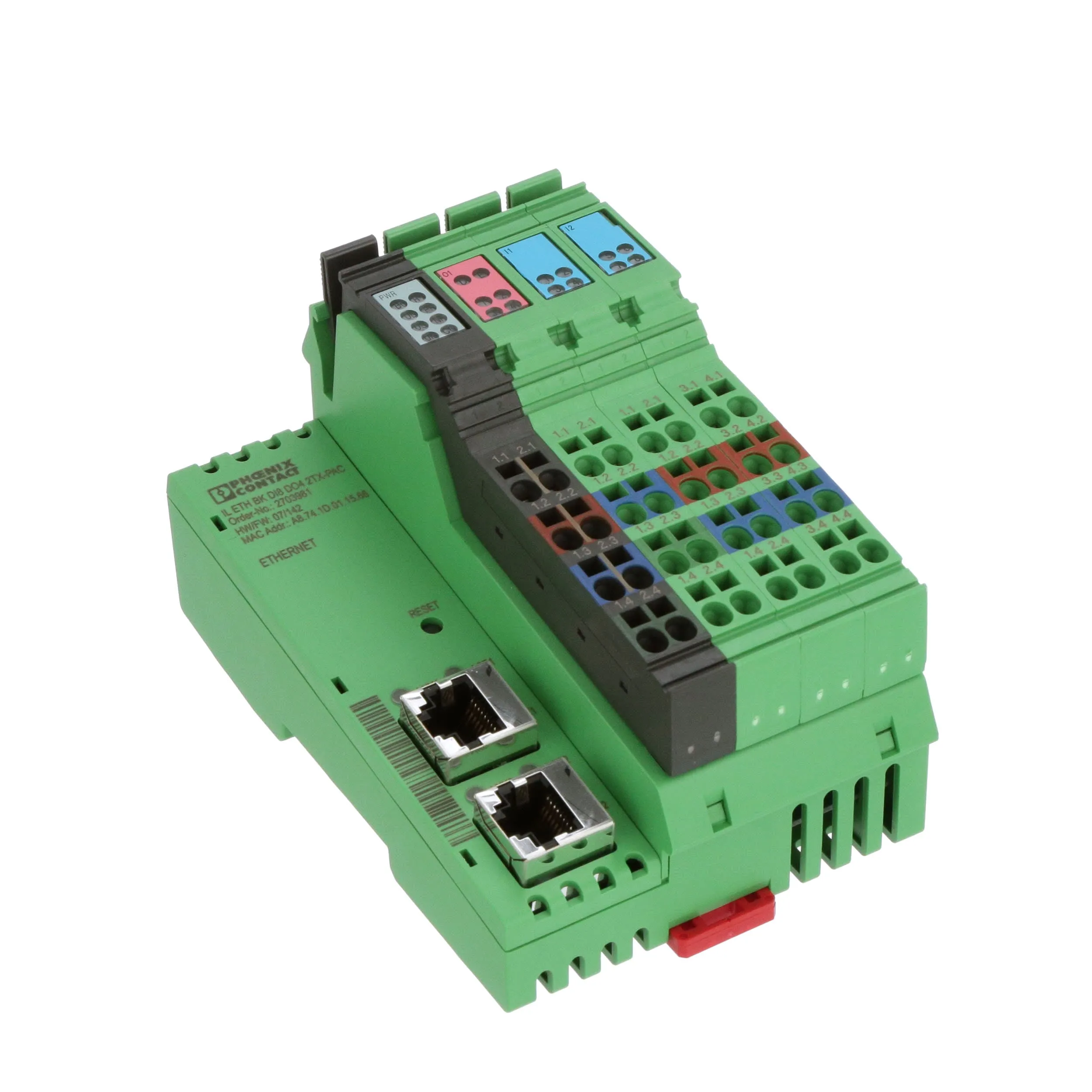

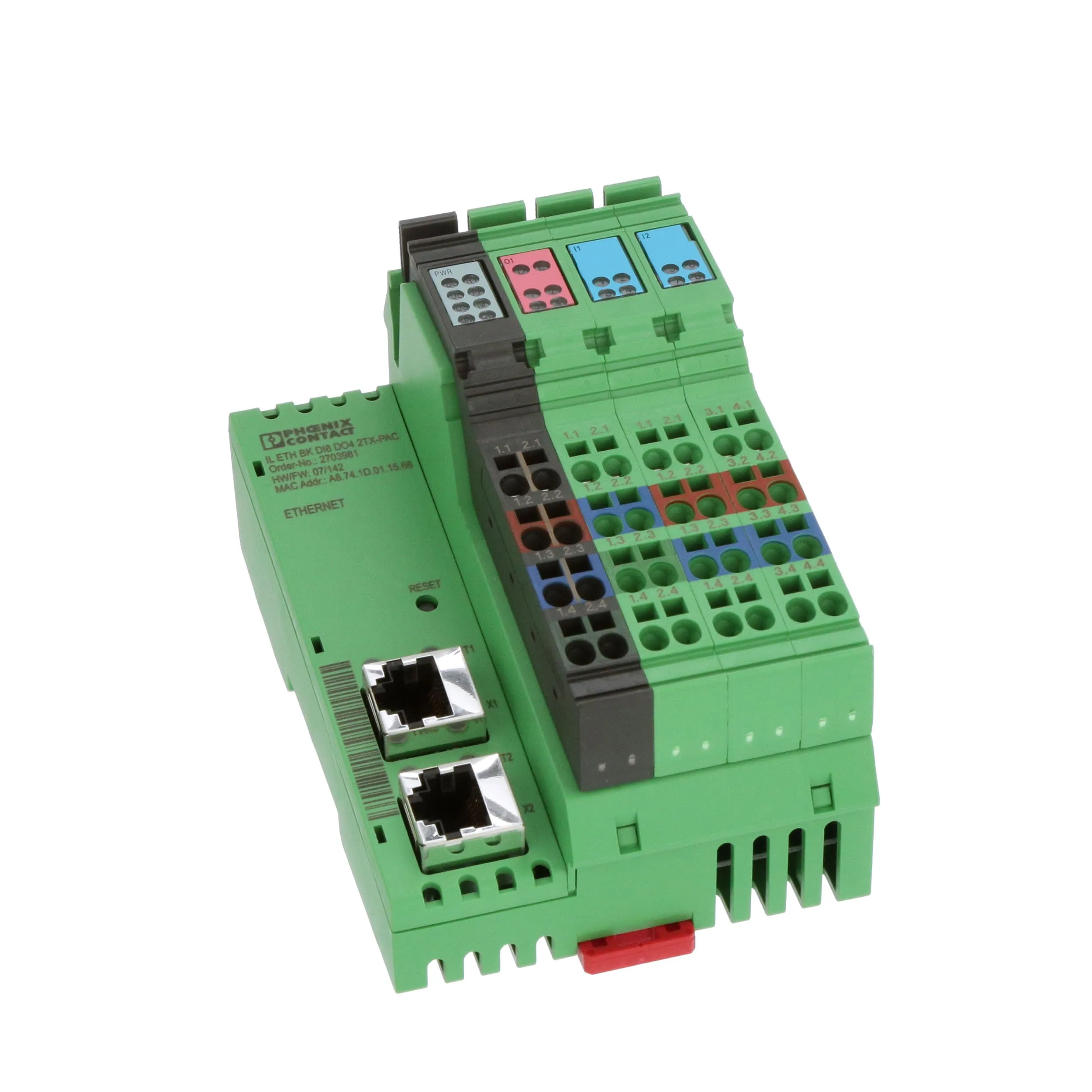

The bus coupler for the Modbus/TCP(UDP) protocol has 4 digital outputs and 8 digital inputs. This package contains all the necessary Inline connectors for connecting the supply and the I/Os.

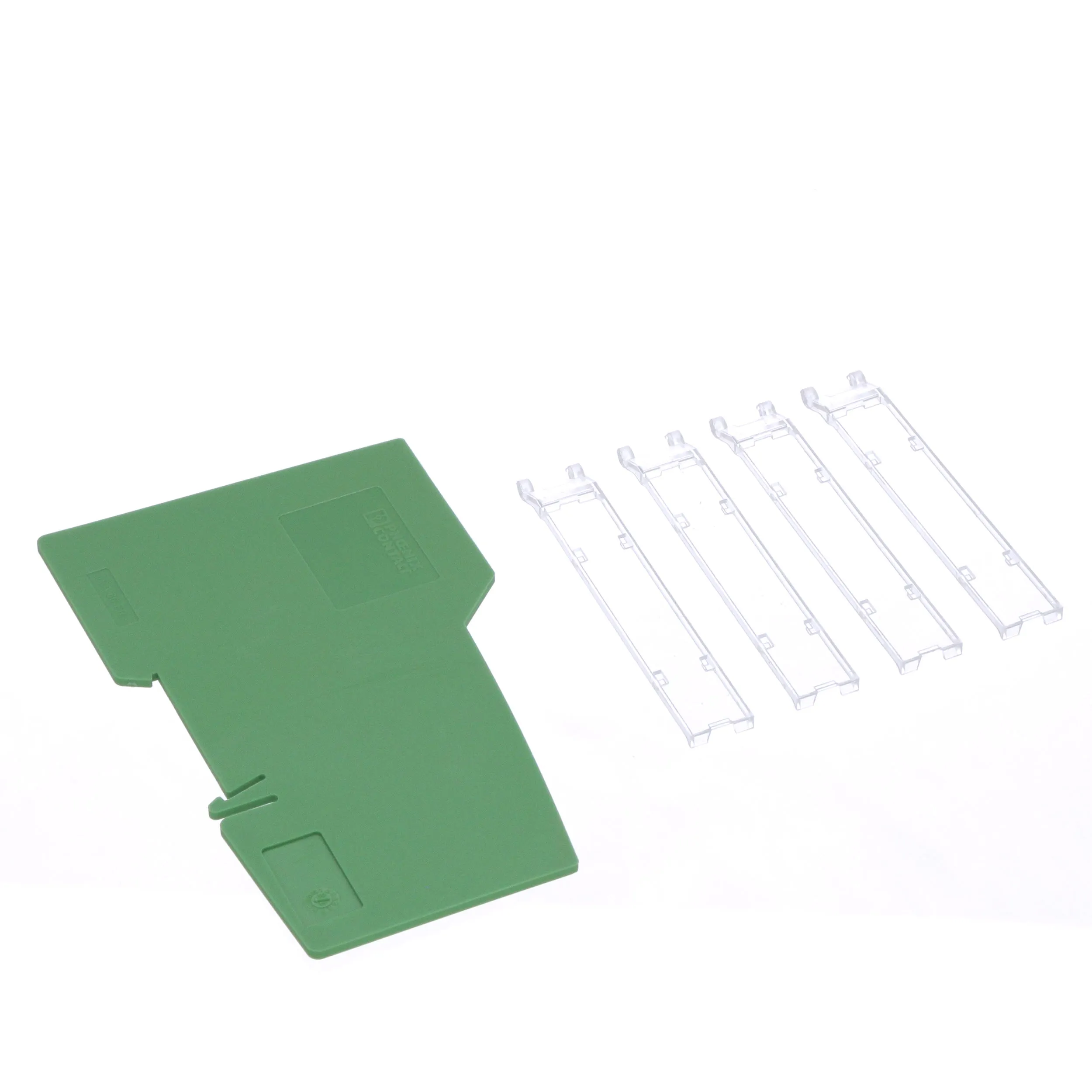

The Inline terminals can be labeled using pull-out labeling fields. The fields have insert cards that can be labeled individually to suit the application. Additionally, there is the ZBFM-6... Zack marker strip for labeling the terminal points.
