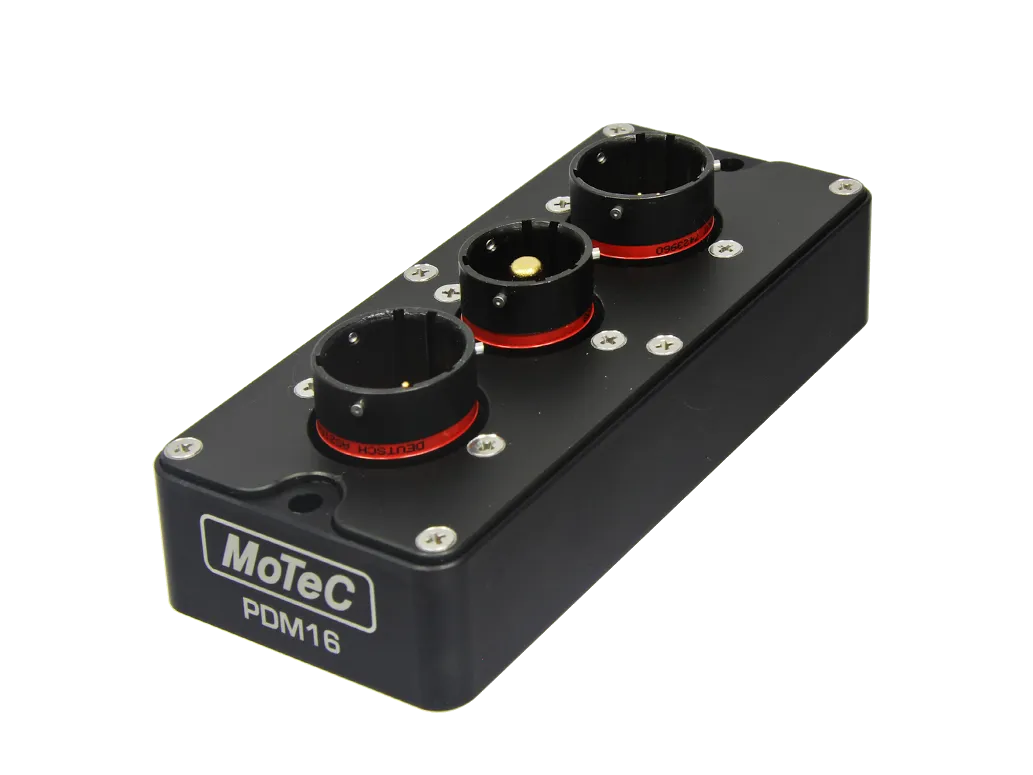

MoTeC’s 16 output Power Distribution Module (PDM16) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers`, simplifying wiring and reducing weight, while increasing reliability.

***Please email us for details on the IP68 version for Marine use

BASIC SPECIFICATIONS

Outputs

• 8 x 20 A outputs—20 A continuous, 115 A transient (typical)
• 8 x 8 A outputs—8 A continuous, 60 A transient (typical)

Inputs

• 12 x Switch inputs

Communications

• 1 x CAN

Diagnostic Information

• Output current and voltages
• Input voltages
• Error status

Physical

• Connectors
  • 1 x 26 pin Autosport connector
  • 1 x 1 pin Autosport connector
  • 1 x 8 pin Autosport connector
• Case size 130 x 60 x 28 mm
• Weight 300 gram
