Product Details
＋

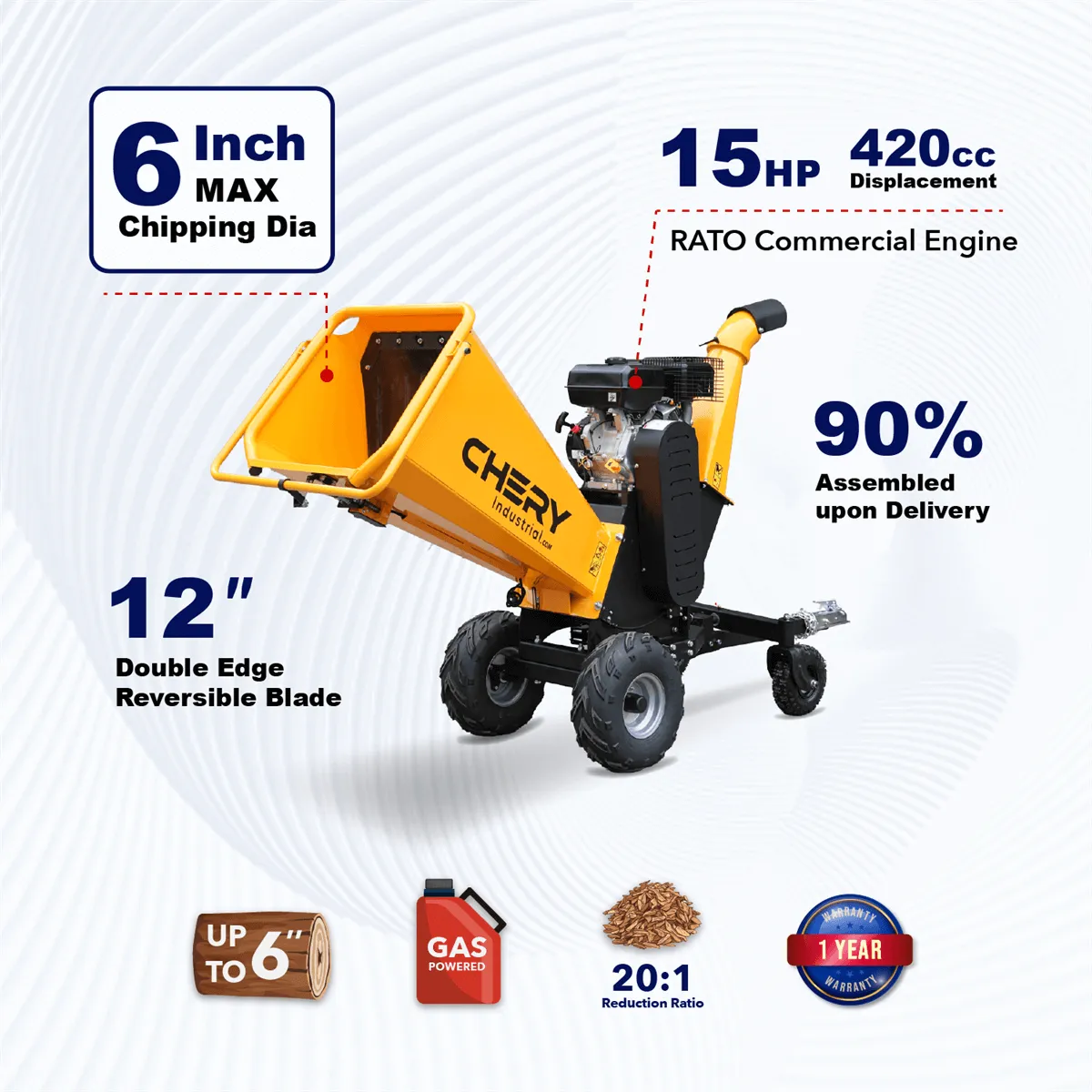

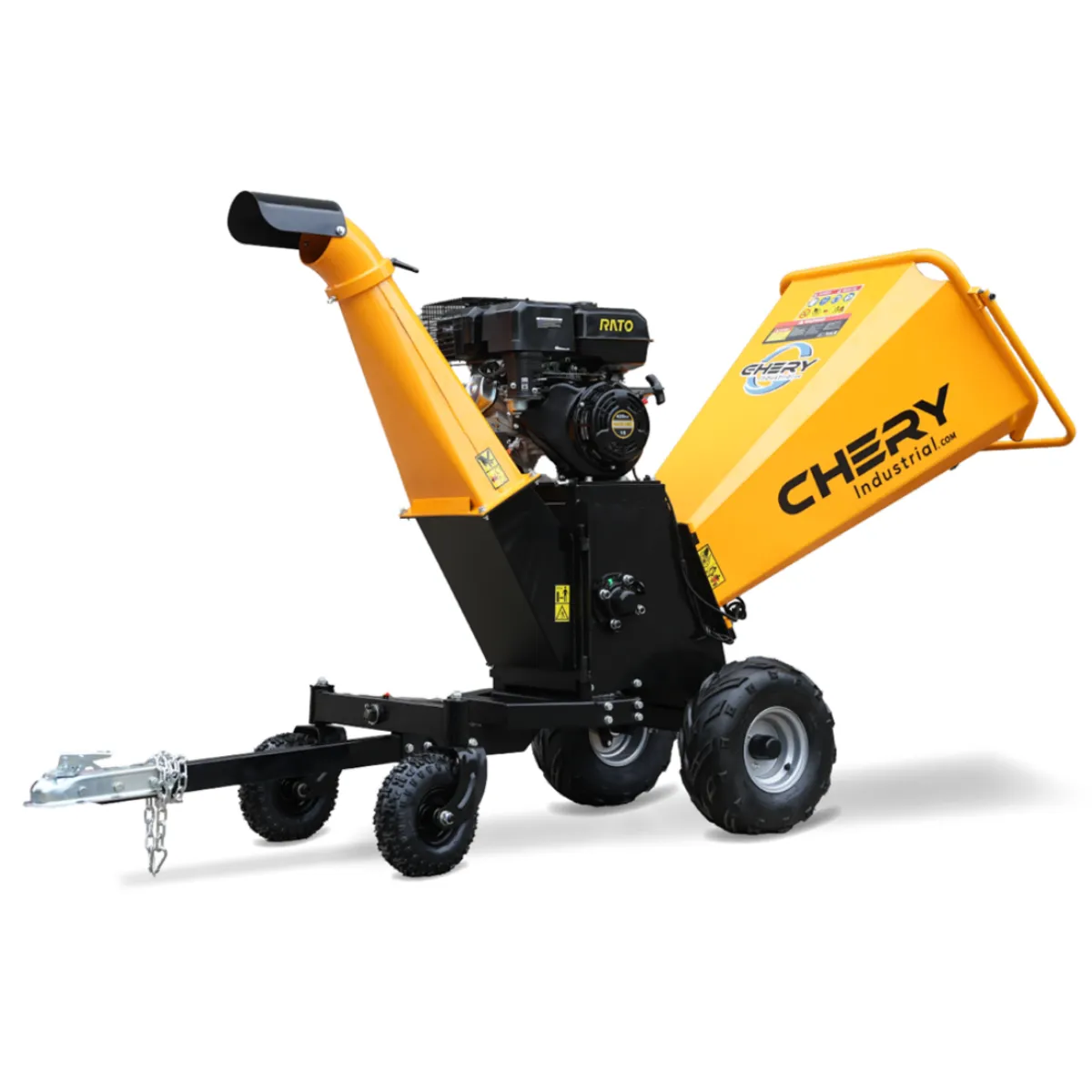

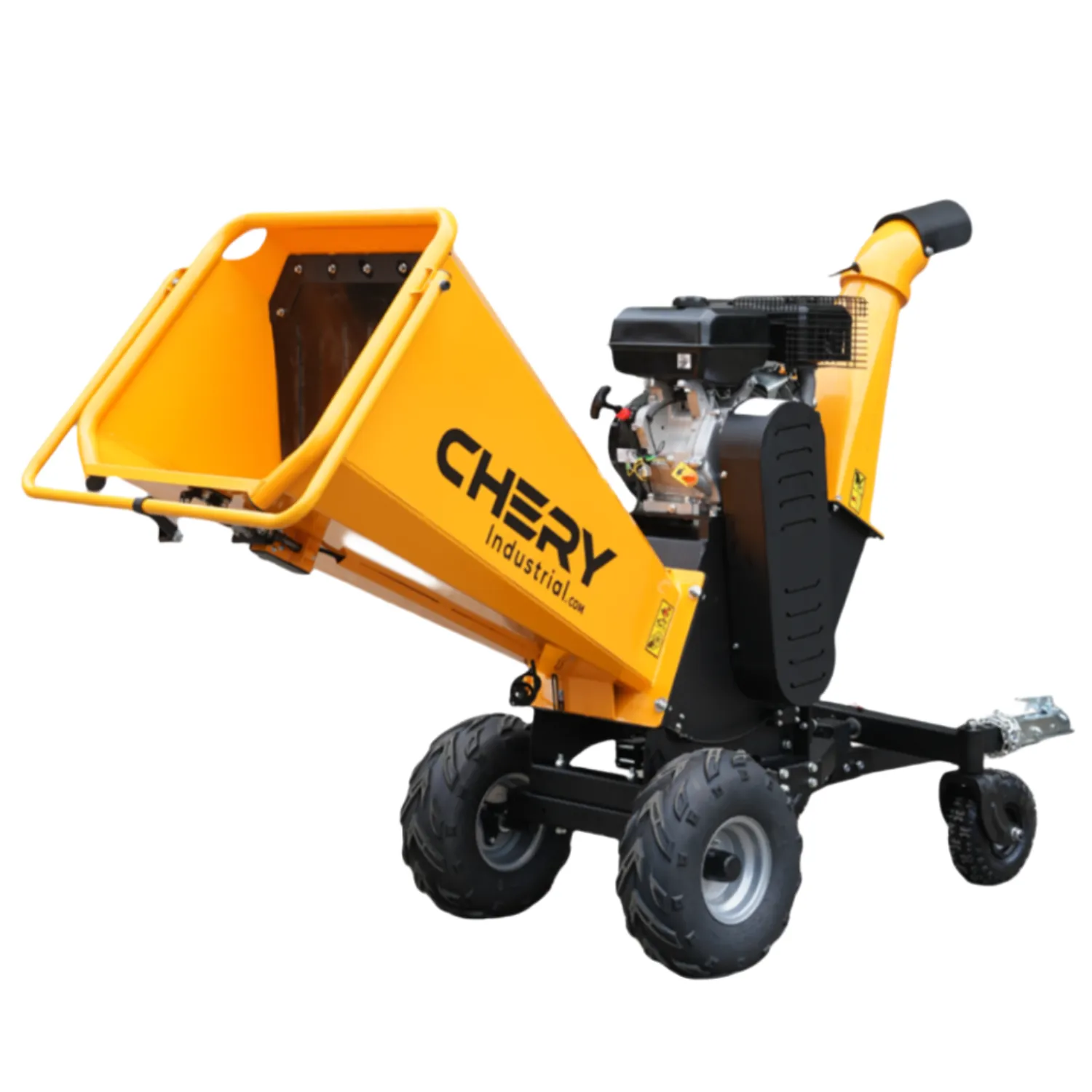

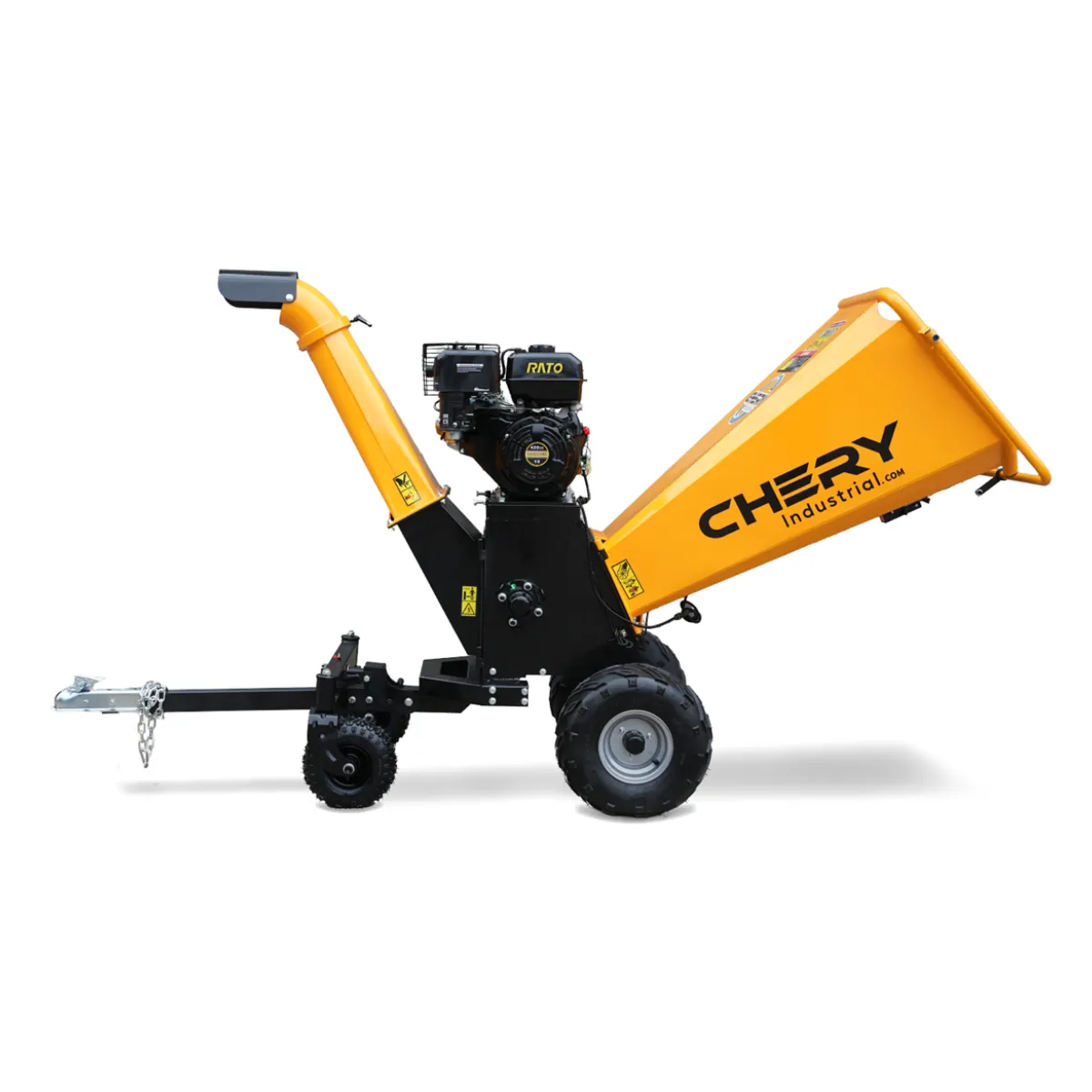

The 6" 15HP gas-powered RATO engine Wood Chipper is designed for effortless tree and branch cutting. Its reversible double-sided blade extends durability, while the 360° rotating discharge chute adds flexibility. The quick-open feed chute simplifies maintenance, and the 2" ball-type tow bar enhances mobility. Ideal for professionals and rental companies, it efficiently processes yard waste into mulch or fertilizer.
Specification
| Description | Specifications |
| Certification(S) | CE, EPA |
| Engine | 15 HP 420cc RATO R420 Commercial Engine |
| Engine Type | Single Cylinder, 4-stroke, Air-Cooled, OHV |
| Power Type | Gasoline Powered |
| Gasoline | Clean, fresh, unleaded gasoline |
| Fuel Tank Capacity | 1.7 Gallon |
| Max Wood Diameter | 6 inch |
| Start Type | Recoil Start |
| Belt | 2 x V-Belts |
| Rated Speed(Rpm) | 3600 |
| Torque | 18.4 ft/lb |
| Cutting Method | Drum |
| Cutting Blades | 12-inch Double edge reversible blades |
| Chipping Drum Dia | 14 inch |
| Reduction Ratio | 20: 1 |
| Infeed Opening | 11.7 x8.7 inch |
| Discharge Chute | 360° Rotating |
| Wheelbase | 40.6 inch |
| Tire | 16x8.0-7 DOT Rated |
| Maximum Speed | Not highway towable and max speed 25 mph |
| Removable Tow Hitch | 2 inch Ball |
| Emergency Stop | Stop Bar |
| Assemble | 90 % Assembled upon Delivery |
| Finish | Powder-Coated |
| Dimension | L105.63"x W40.55"x H61.02" |
| Weight | 551 lbs |
| Warranty | 1 Year |
Feature

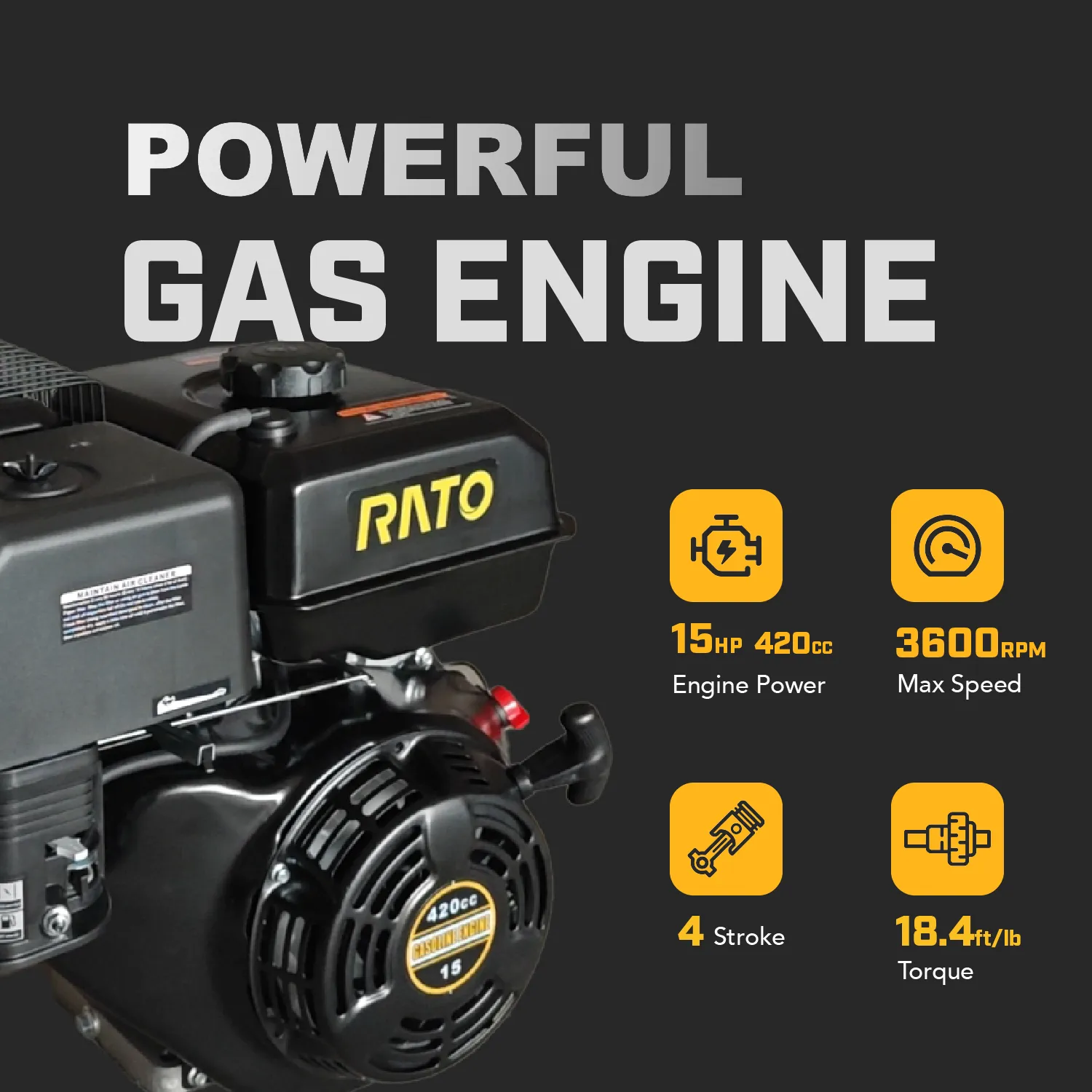

- Powerful 15hp 420cc RATO gas engine with recoil start.

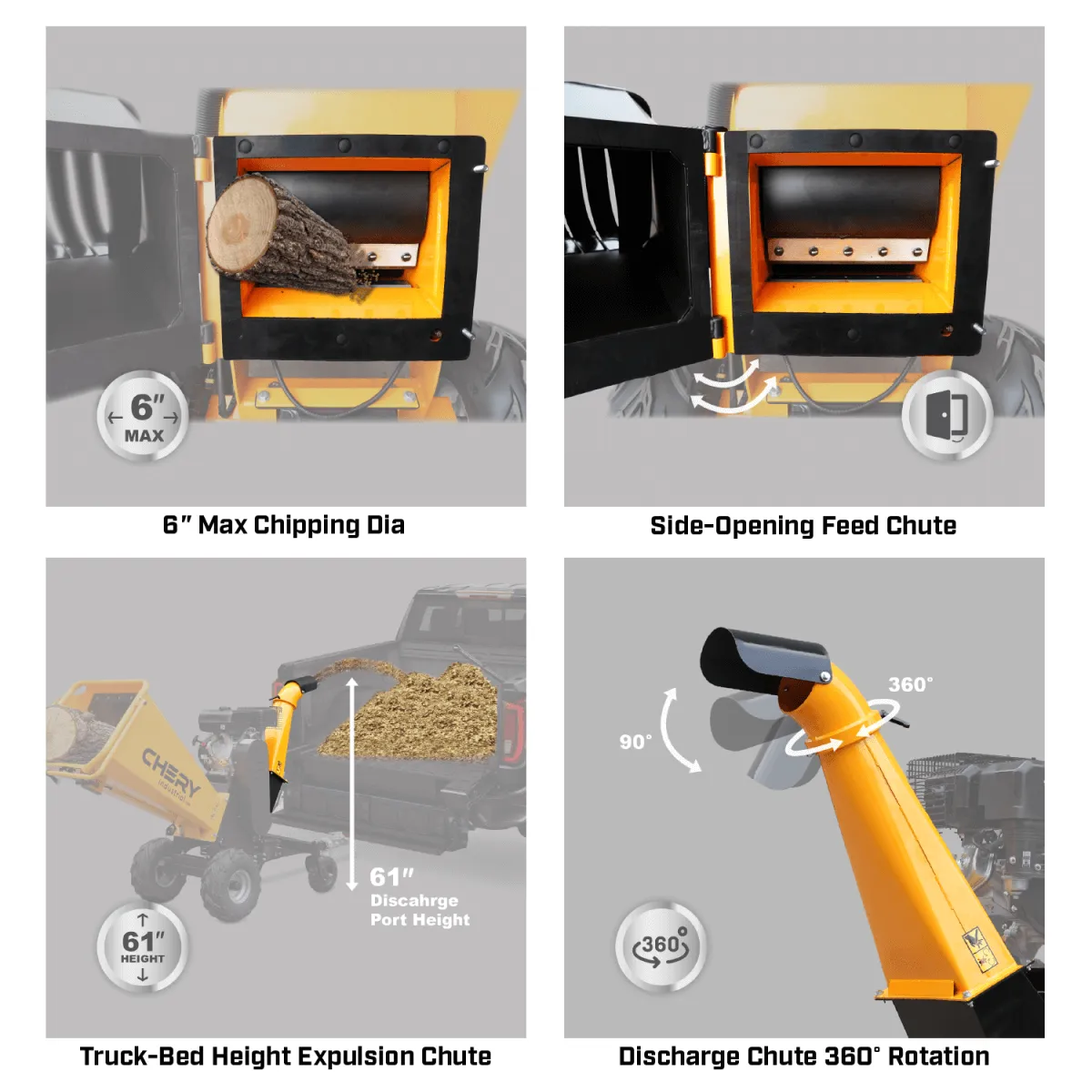

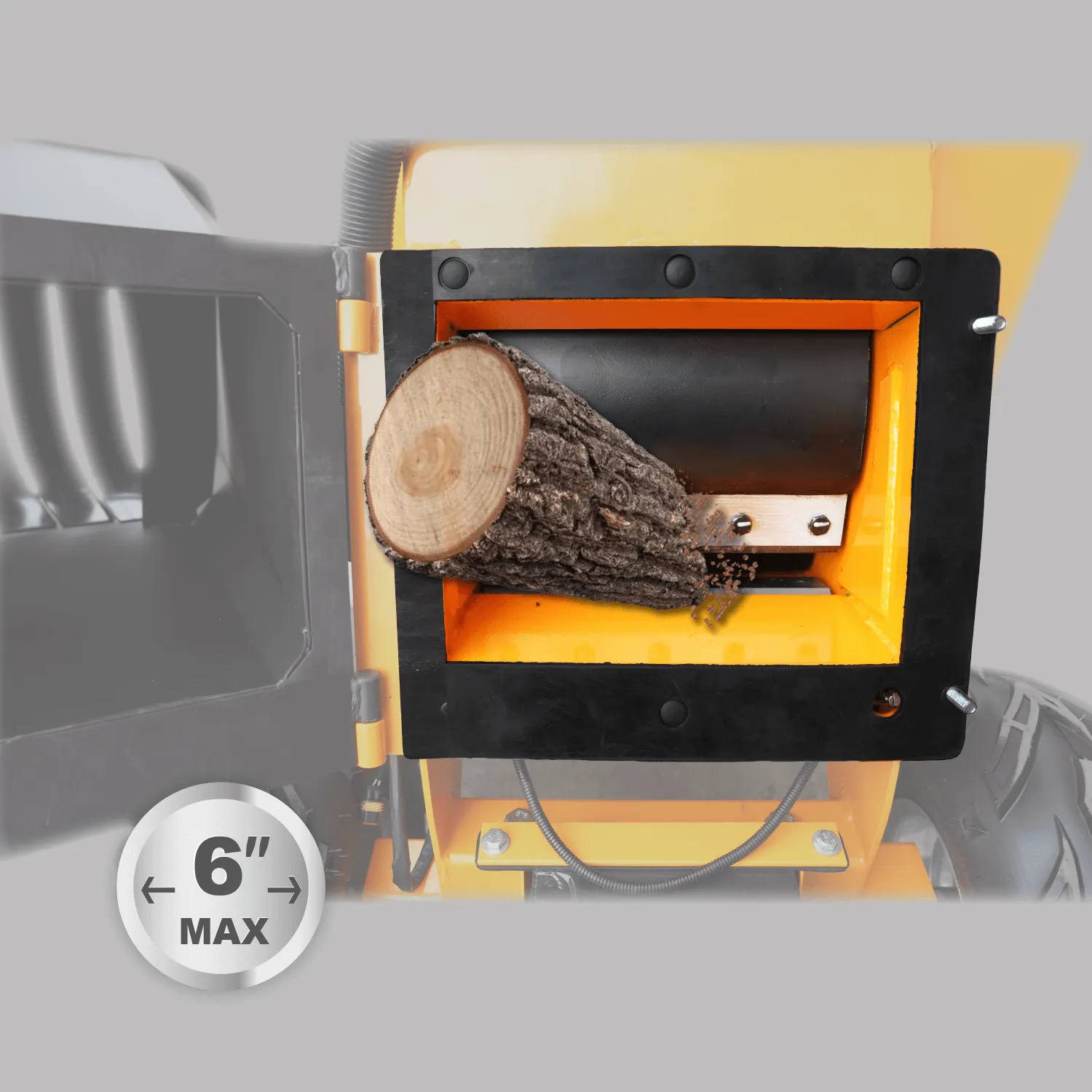

- 6" Max Chipping Dia: The roller has a diameter of 14" generates strong inertia to cut woods up to 6" dia.

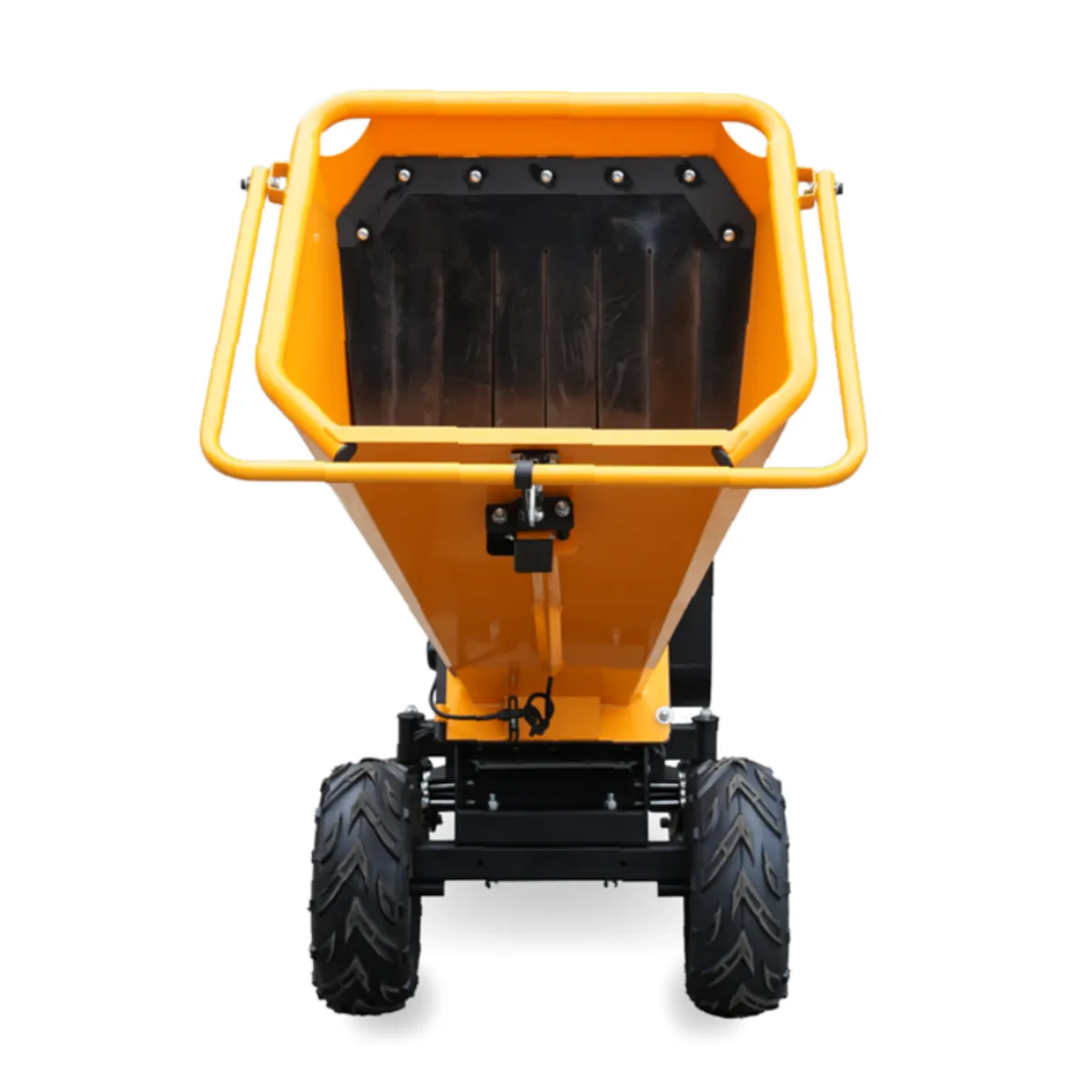

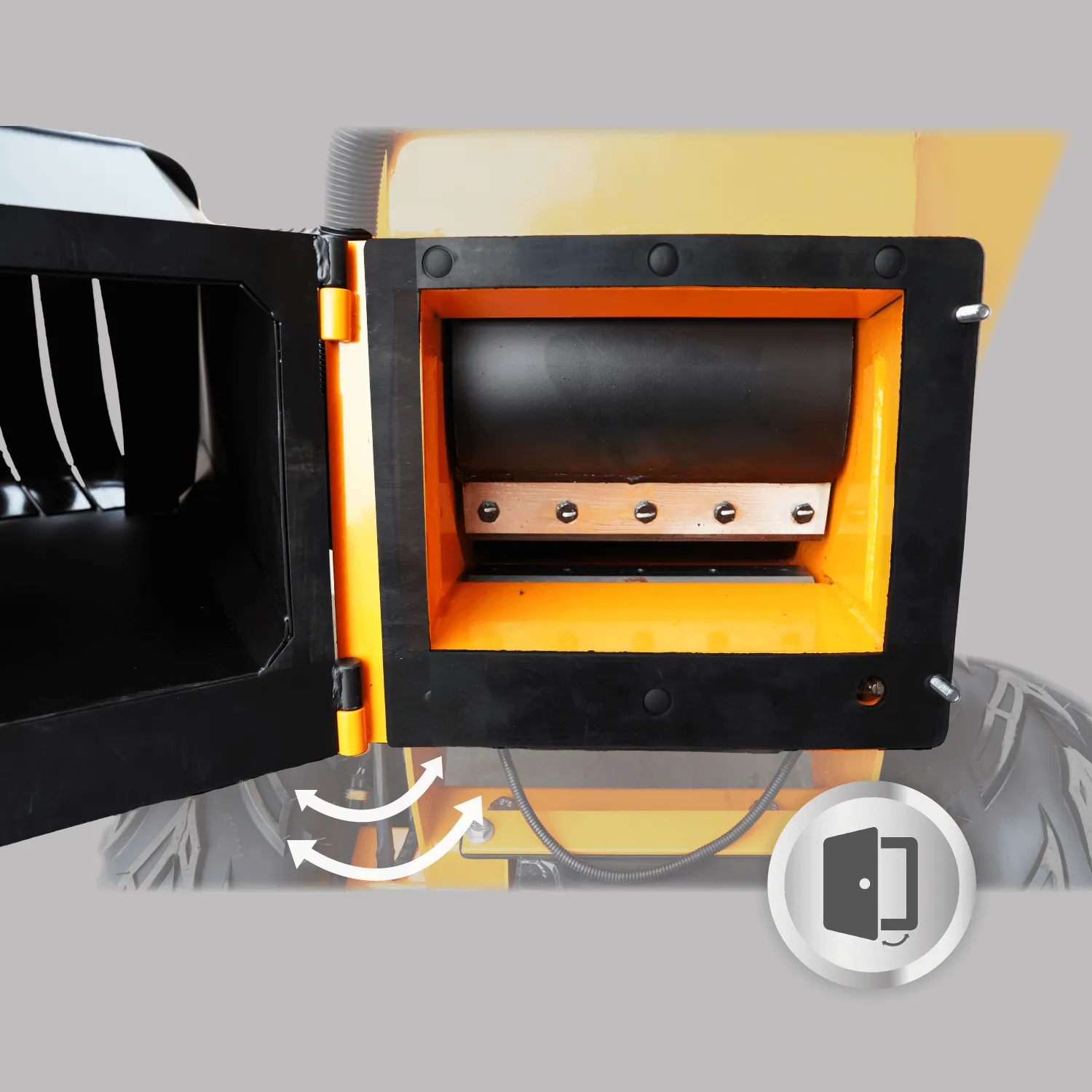

- Side-opening Feed Chute: Remove 2 bolts to open the hopper for easy cleaning and blade changes.

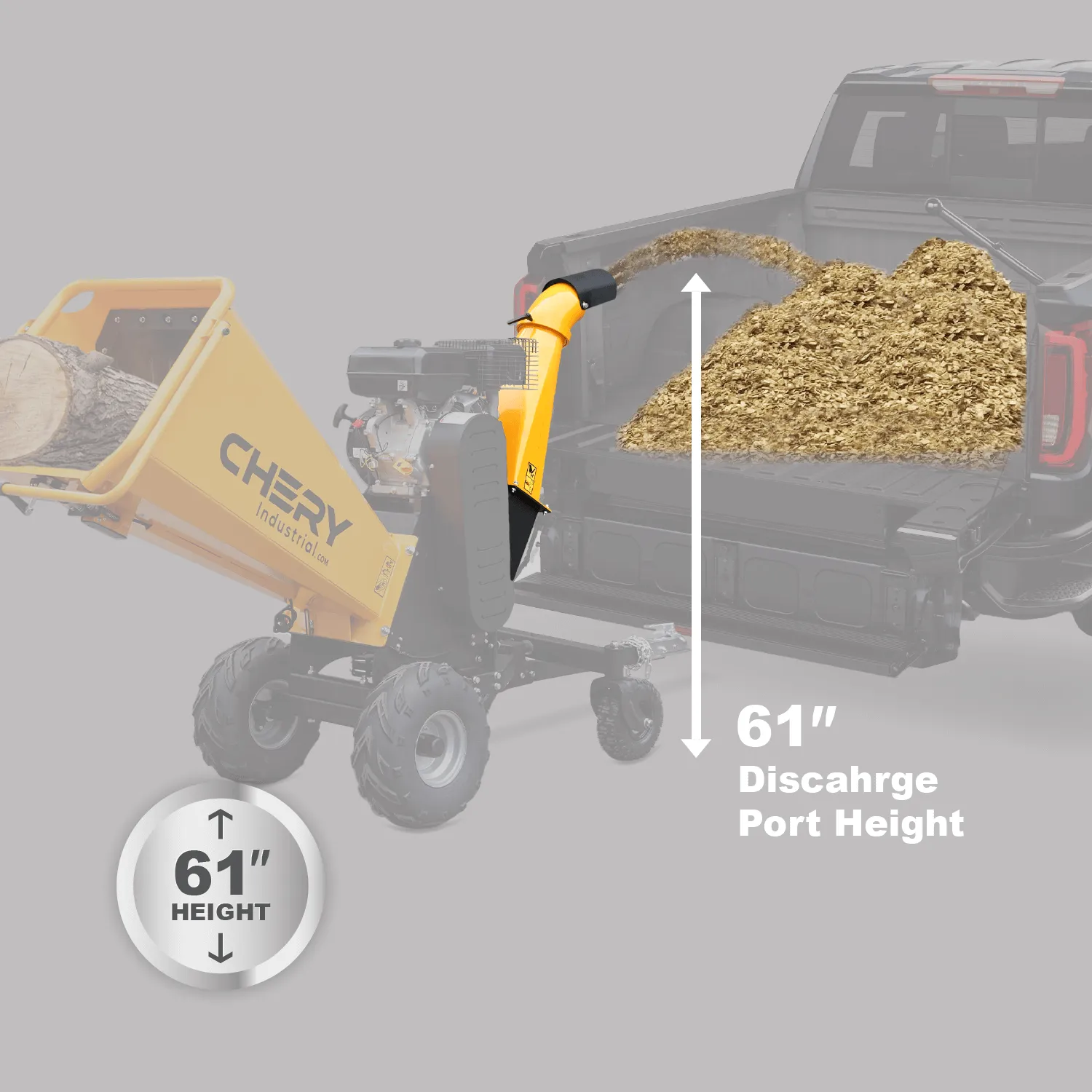

- Expulsion Chute Height: 61" truck bed height chute with adjustable rotating cast iron hood.

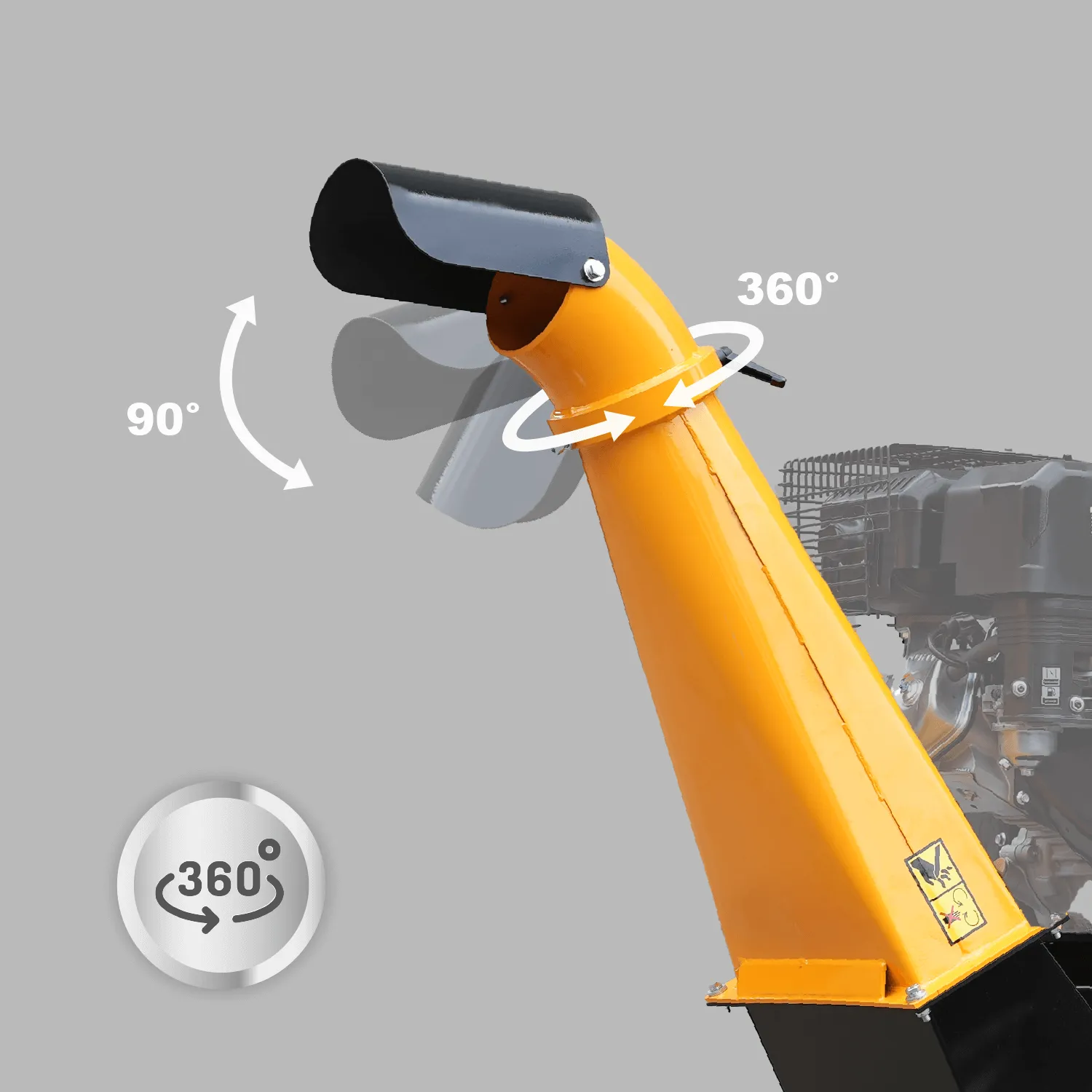

- Discharge Chute 360° Rotation: Works with loading equipment to discharge debris accurately and boost efficiency.
-

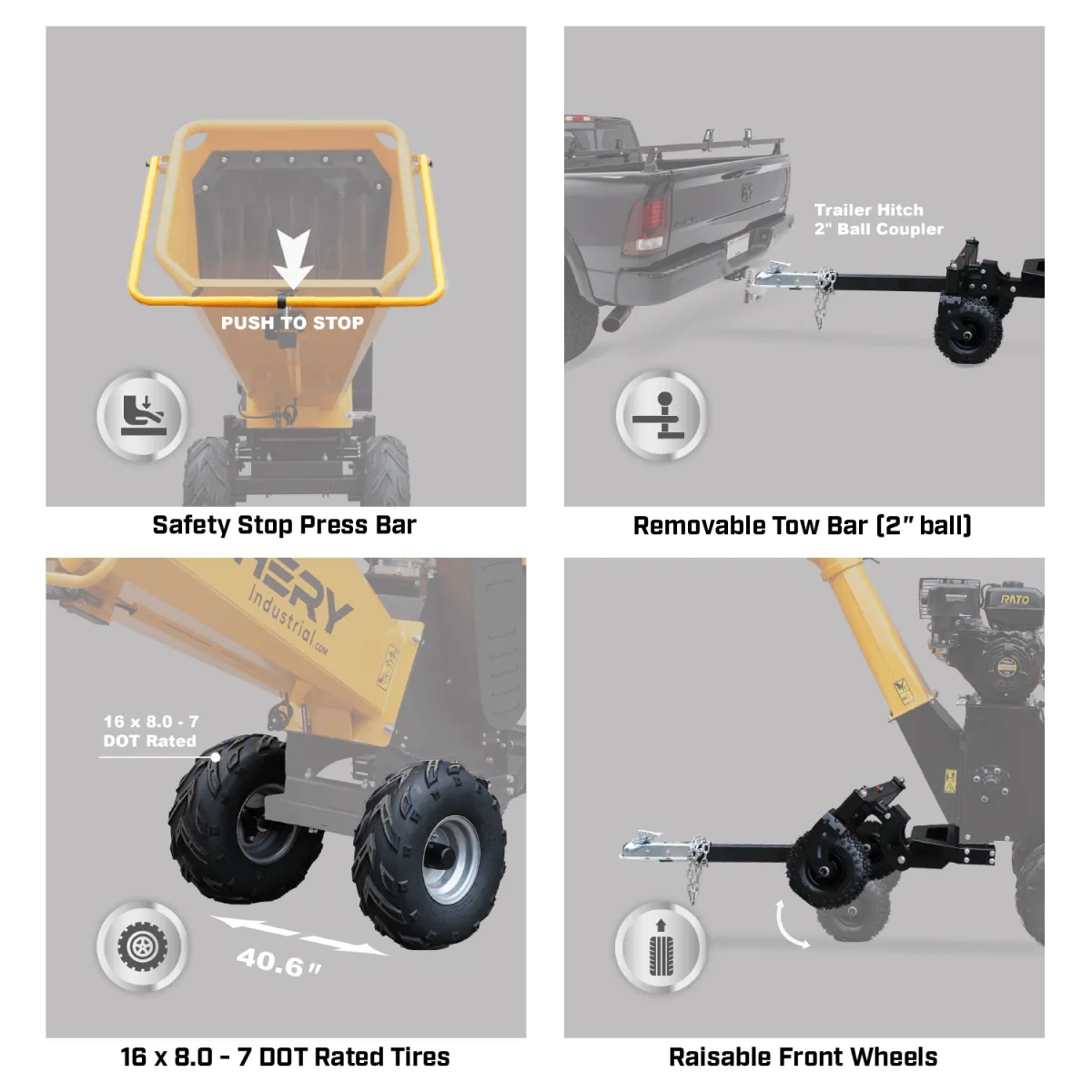

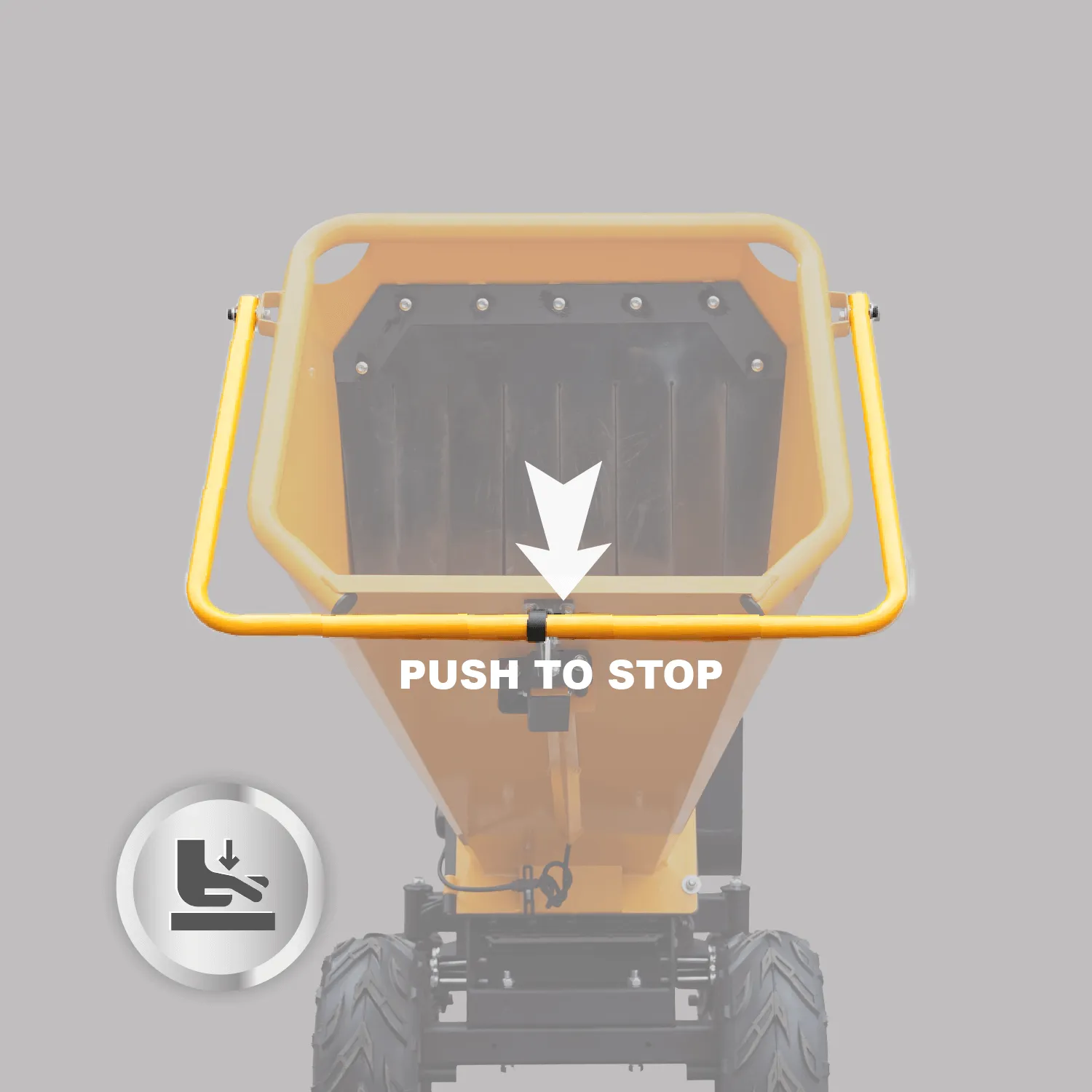

Safety Stop Press Bar: Push the safety bar to stop the machine instantly in case of an emergency.
-

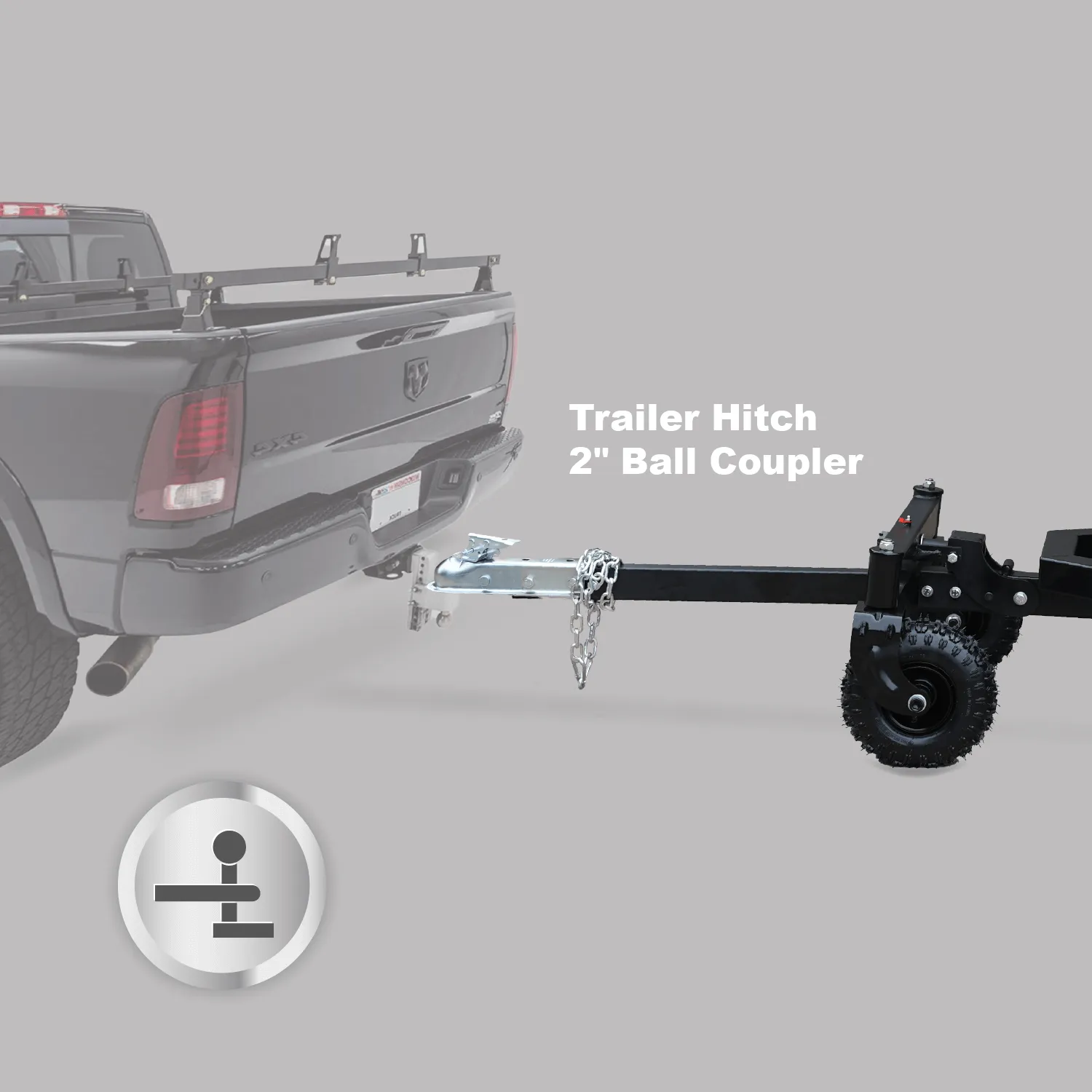

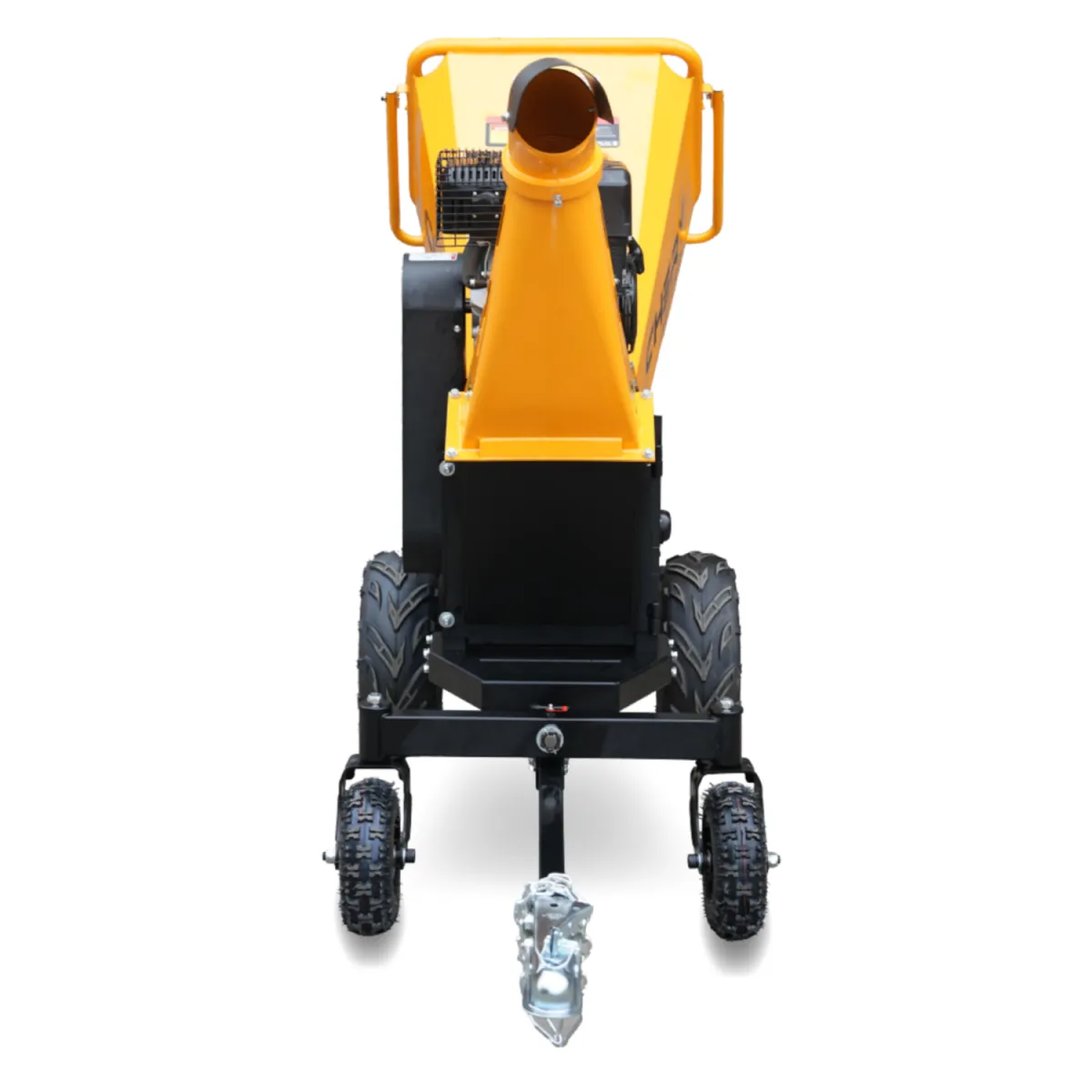

Removable Tow Bar (2″ ball): With a removable tow hitch as a safety feature for convenient outdoor work.

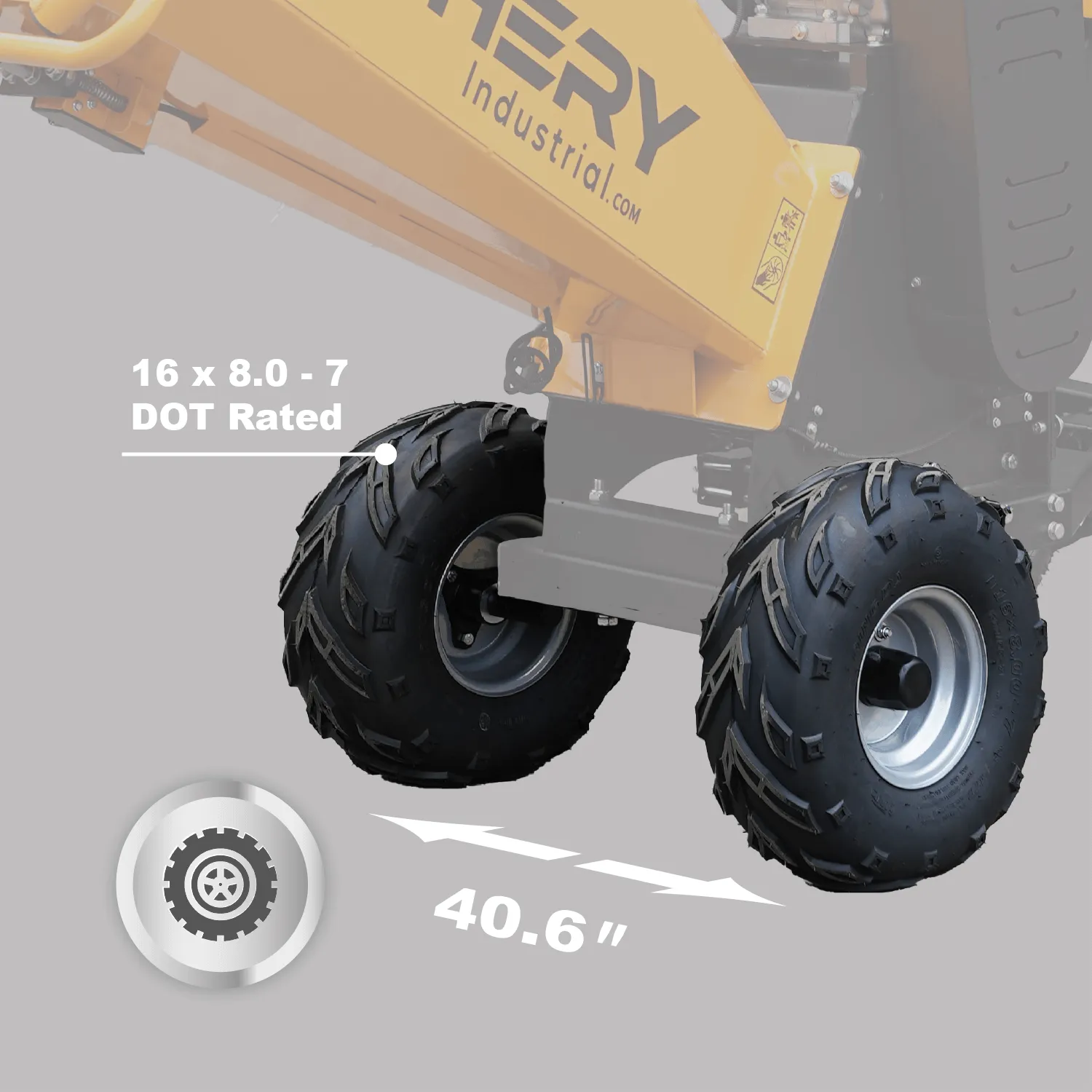

- 16x8.0-7 DOT-Rated Tires: The wheelbase reaches 40.6", providing stability when towing.

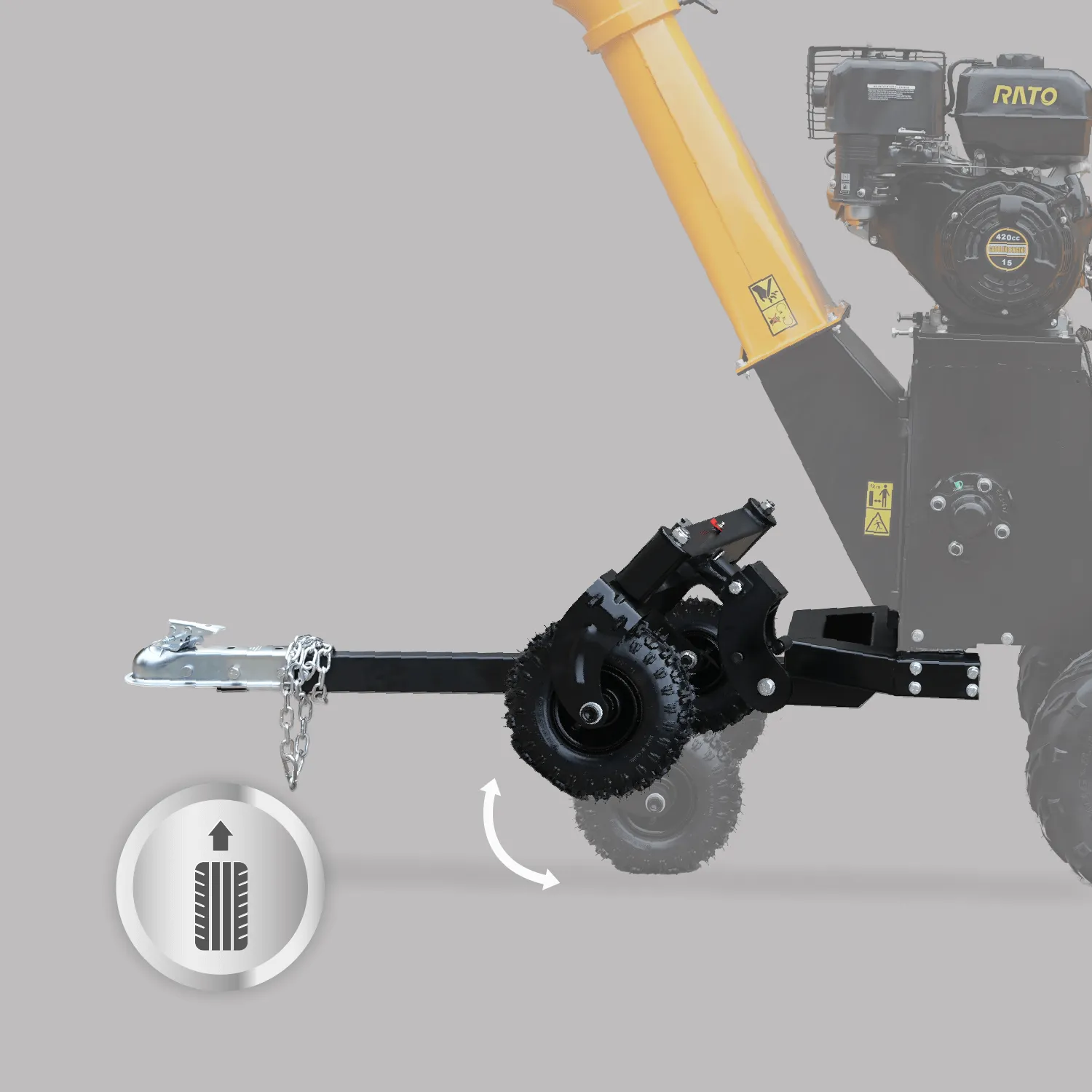

- Raisable Front Wheels: Raise the front tires for towing; lower them for support when the chipper is in use.
Package Size
- LxWxH (inch): 45.3x30.7x48.4
- Weight (lb): 617.3
- A forklift or equivalent is required for unloading.
