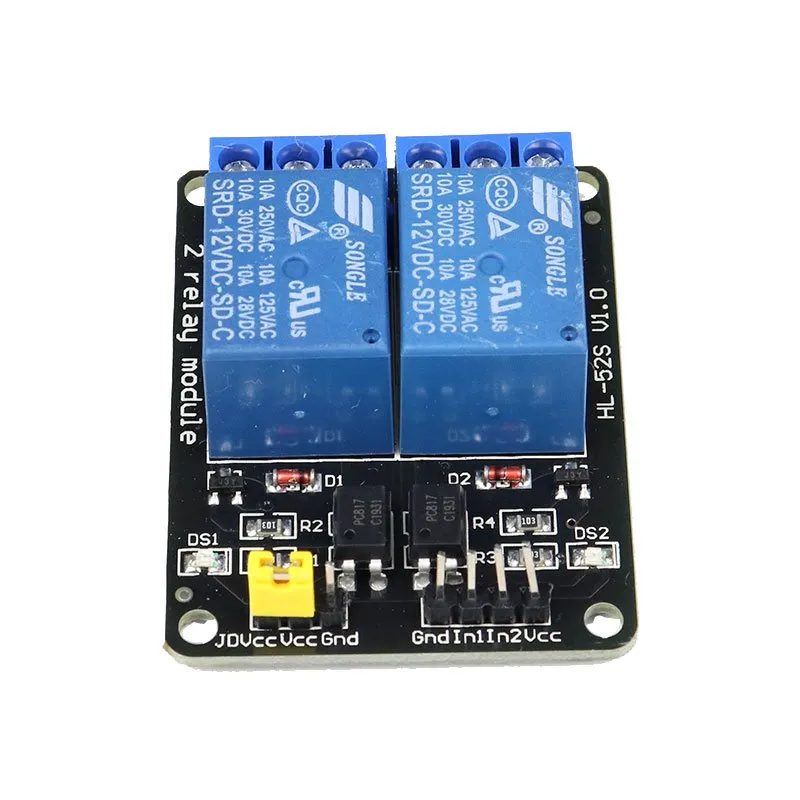

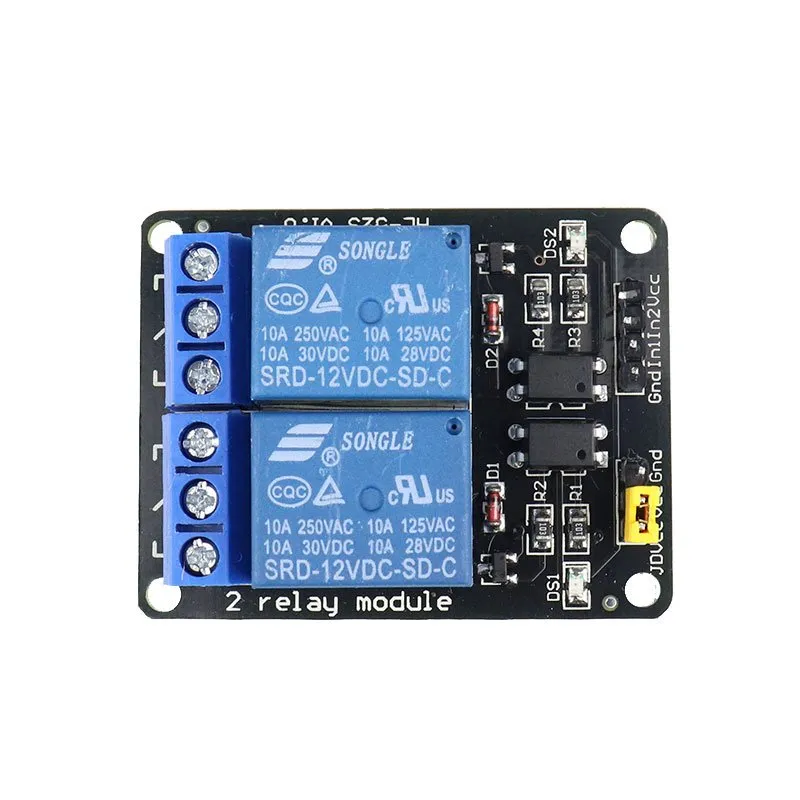

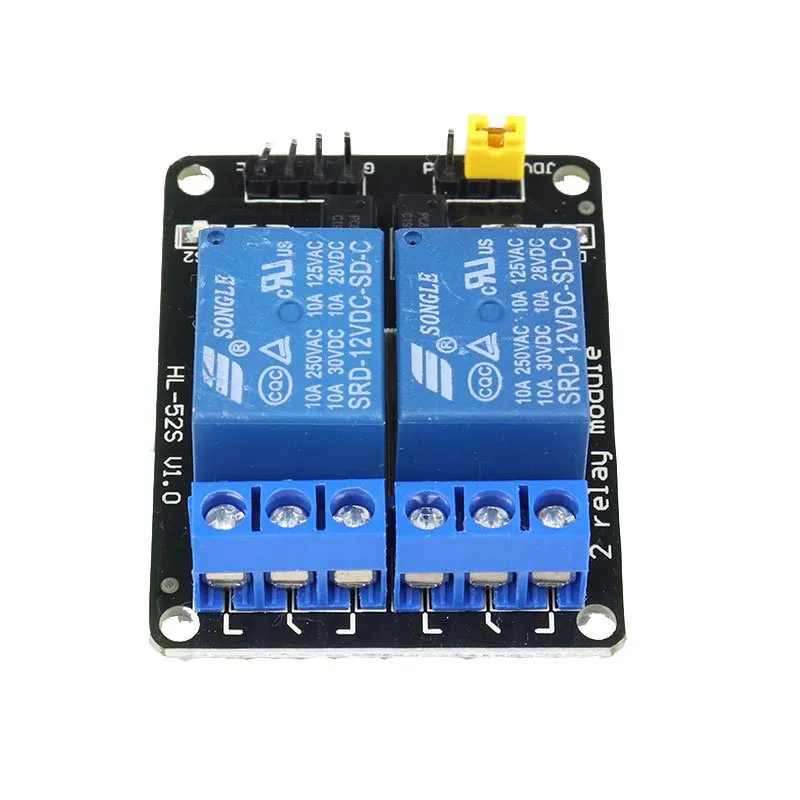

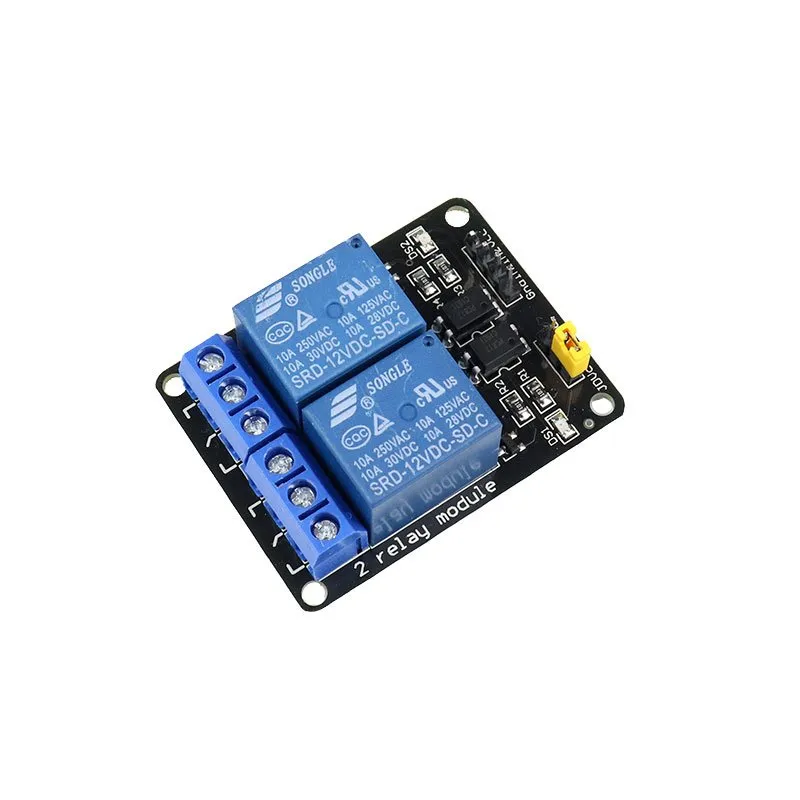

Double Channel Relay Board (with Light Coupling) [12Volt]

This is a 2 channel relay board that operates on 12V. Can be used directly to control 240V power appliances from most of the microcontrollers and other control system circuits. Perfect for switching 240V appliances like lights, fans, etc.



The board has a high-quality relay, which can handle a maximum of 10A @ 120V or 7A @ 250V AC, 10A/24V DC. Each Relay has three connections - Common - C, Normally Open-NO, Normally Closed-NC brought out to 3 pin screw terminals which makes it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. Power input and relay control signals are brought to header pins on the board.

1 x 2 Channel 12V 10A Relay Module with optocoupler
